Main Feature:
1. Brushless DC motor, also known as EC motor; Magnetic Driven;
2. Small size but strong; Low consumption & High Efficiency;
3. Long time continuous working, lifespan about 30000 hours;
4. Safety - no spark, Explosion - Proof; Low noise about 40dB;
5. Submersible, 100% waterproof;
6. Wide range of working voltage; Maintenance - free;
7. Can be used to pump water, oil, acid and alkali solution;
8. Variety Power: DC electric source, Battery or Solar Panel;
9. Soft Start with Low in-rush current, great for the Solar System.
Detailed Parameter:
| No. | Description | Details |

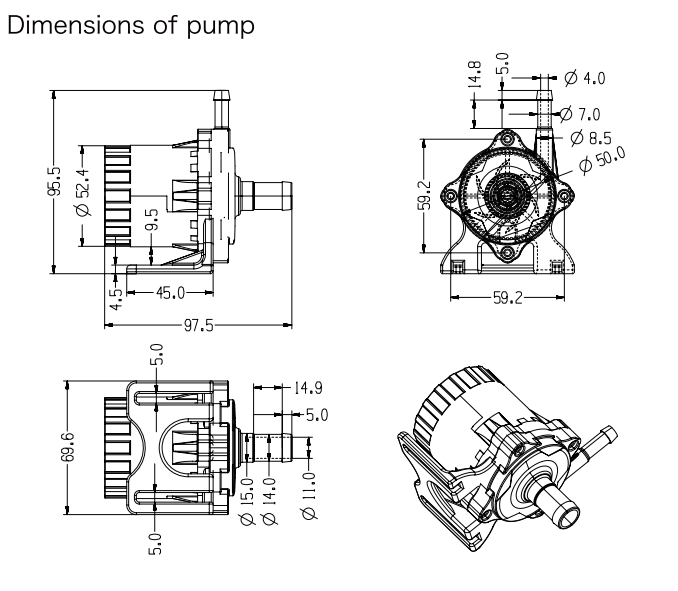

| 1 | Dimension and weight | 97.5X69.6X95.5mm ;0.86kg |
| 2 | External diameter of outlet | 7mm |
| 3 | External diameter of inlet | 14mm |
| 4 | Driving mechanism | Brush-less, magnetic isolated design |
| 5 | Material of pump shell | ABS,PES/SPS/PPS/PA66+30%GF (Optional) |
| 6 | Condition of use | Can continuously work, submersible or land use (not self-priming) |
| 7 | Suitable medium | Water, oil, or normal acid/ alkaline liquids |
| 8 | Max working temperature | 100℃ |
| 9 | Power consumption | 55W/80W |
| 10 | Rated voltage | 12Vdc or 24Vdc |
| 11 | Working voltage range | 6Vdc ~ 16Vdc or 6Vdc ~ 26Vdc |
| 12 | Max load current | 4.5A/3.3A |
| 13 | Max horizontal flow rate | 500L/H 600L/H |
| 14 | Max static lift | 15M/20M |
| 15 | Noise class | <40dB |
| 16 | Waterproof class | IP68(suitable for submersible installation) |
| 17 | Life span | >30,000hrsIP68(suitable for submersible installation) |
| 18 | Power supply | Suitable solar panel, batteries, adapter or other power source |
| 19 | Protection function | Dry-run protection, lock protection(customized function) |
| 20 | Power regulation function | Speed adjustable by PWM signal, 0~5V analog signal or potentiometer (functions are optional for customization) |

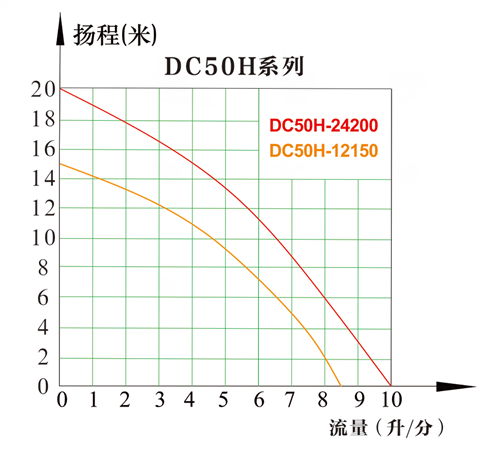

Flow Chart
