Main Feature:1. Sine Wave Silent Technology, Noise less than 40dB;2. Default with water shortage and stuck protection functions;3. Brushless DC motor, Magnetic Driven, Small size & High Efficiency

  • Model : DC50B
  • Rated Voltage :
  • Max Static Head : 12V/24V
  • Max Flow rate : 100.5*95.5*69.6mm
  • Input Power :
  • Inlet Outer Diameter :
  • Outlet Outer Diameter :
  • Size :
  • Weight :
  • Material :
  • Waterproof :
  • Noise :
  • Liquid Temperature :

Main Feature:

1. Sine Wave Silent Technology, Noise less than 40dB;
2. Default with water shortage and stuck protection functions;
3. Brushless DC motor, Magnetic Driven, Small size & High Efficiency;
4. Long time continuous working, lifespan more than 20000 hours;
5. Safety - no spark, Explosion-proof, IP68, 100% waterproof;
6. Can be used to pump water, oil, acid and alkali solution.

Specificaiton:

Product description:

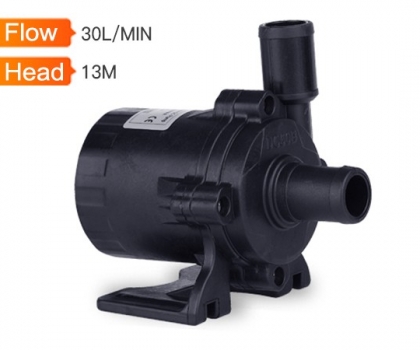

3 PHASES dc pump DC50B 12V 24V head 13M flow rate 1800L/H
Model No.
DC50B-24130S
Dimension and weight
100.5mmx95.5mmx69.6mm;480g
External diameter of outlet
20mm
External diameter of inlet
20mm
Material of pump shell
ABS,PES/SPS/PPS/PA66+30%GF (Optional)
Max working temperature
100℃
Power consumption
 2.5W~86.4W
Max. head
13M
Max. flow rate
1800LPH
Speed adjustable
No.
Self-priming
No.
