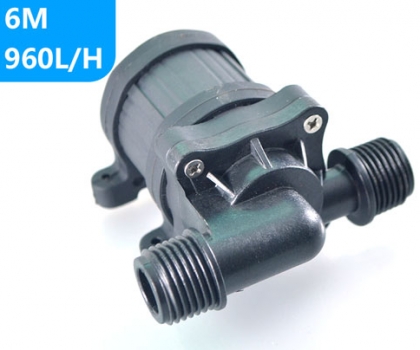

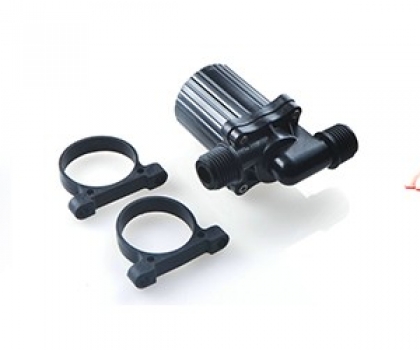

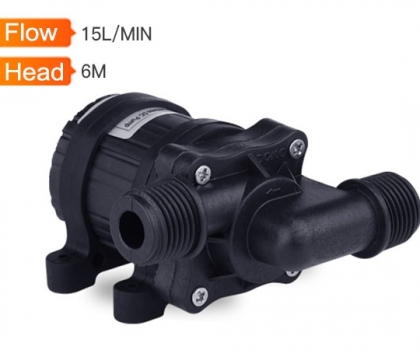

Micro Water Pump - DC40C
Micro Water Pump - DC40C
Micro Water Pump - DC40C
Micro Water Pump - DC40C
Micro Water Pump - DC40C
Micro Water Pump - DC40C

Micro Water Pump - DC40C

2021-09-06 16:34:34   160

Main Features:1. Brushless DC motor, also known as EC motor; Magnetic Driven;2. Small size but strong; Low consumption & High Efficiency;3. Long time continuous working, lifespan about 30000 hours

  • Model : DC40C
  • Rated Voltage :
  • Max Static Head : DC12/24V
  • Max Flow rate : 88.5*81.5*43.8mm
  • Input Power : 20mm(thread)
  • Inlet Outer Diameter : 20mm(thread)
  • Outlet Outer Diameter :
  • Size :
  • Weight :
  • Material :
  • Waterproof :
  • Noise :
  • Liquid Temperature :

Main Features:

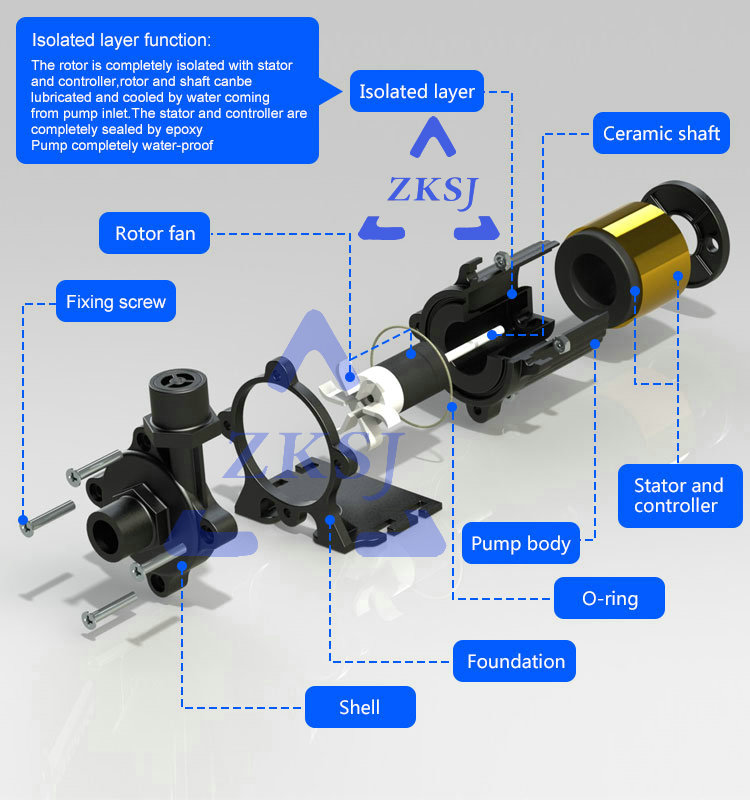

1. Brushless DC motor, also known as EC motor; Magnetic Driven;
2. Small size but strong; Low consumption & High Efficiency;
3. Long time continuous working, lifespan about 30000 hours;
4. Safety - no spark, Explosion - Proof; Low noise about 40dB;

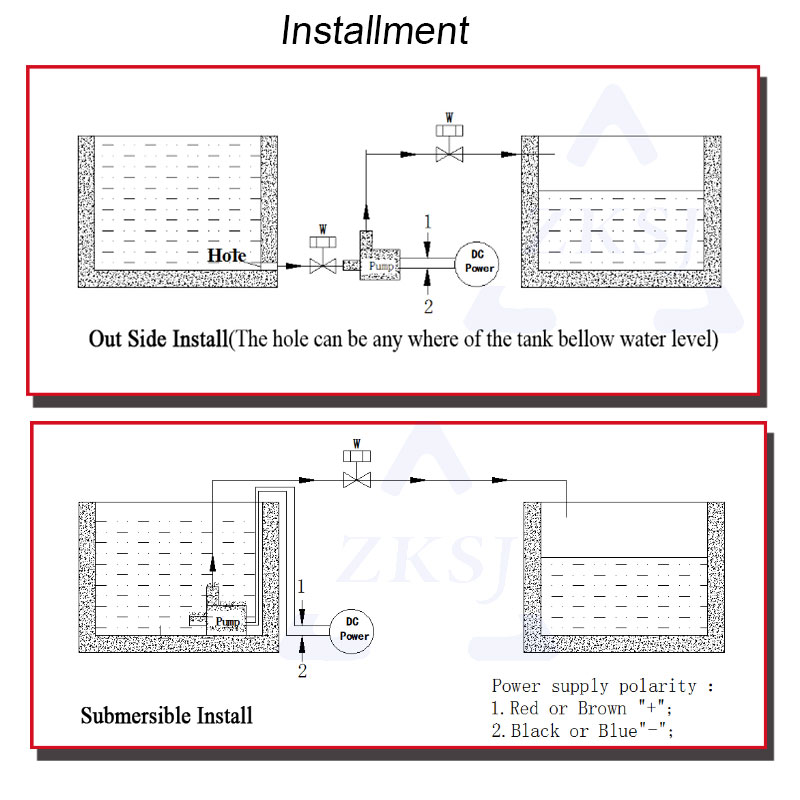

5. Submersible, 100% waterproof;
6. Wide range of working voltage; Maintenance - free;
7. Can be used to pump water, oil, acid and alkali solution;


Specifications:

Model: DC40C

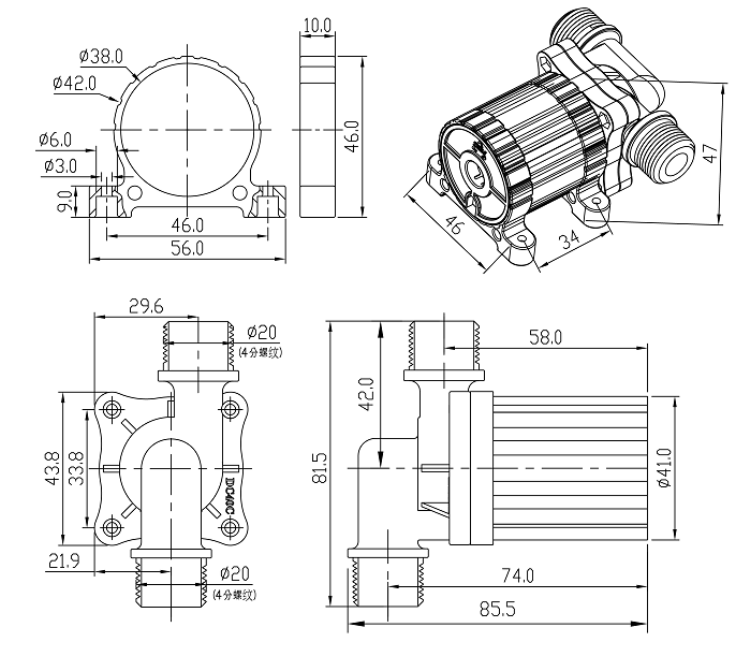

Size: 88.5mmx81.5mmx43.8mm
Weight: 235g
External diameter of outlet: 1/2'' thread(M20mm)
External diameter of inlet: 1/2'' thread(M20mm)
Material: ABS,PES/SPS/PPS/PA66+30%GF (Optional)
Max working temperature: 60℃
Power consumption: 2.5W~28.8W
Rated voltage: 12Vdc or 24Vdc
Working voltage range: 5Vdc ~ 12Vdc or 5Vdc ~ 24Vdc
Max load current: 1.2A

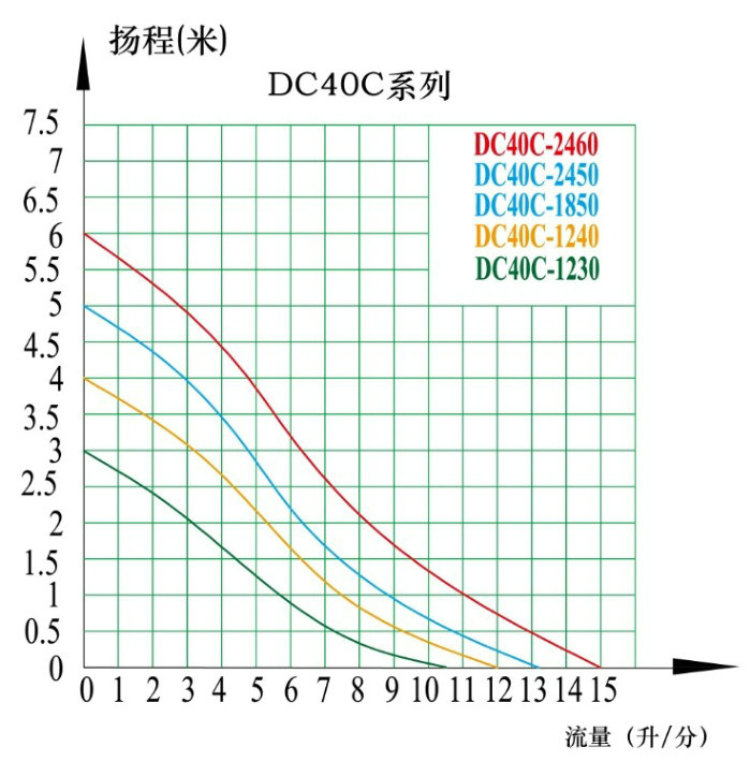

Max horizontal flow rate: 15L/MIN
Max static lift: 6M
Noise class: <40dB
Life span: Can be more than 30,000hr
