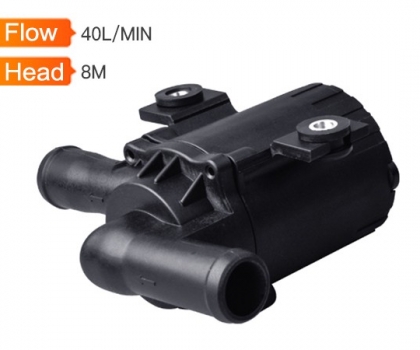

3-Phase Brushless DC Pump DC50D
3-Phase Brushless DC Pump DC50D
3-Phase Brushless DC Pump DC50D
3-Phase Brushless DC Pump DC50D

3-Phase Brushless DC Pump DC50D

2021-09-07 15:19:47   55

Main Features:1. Brushless DC motor, also known as EC motor; Magnetic Driven;2. Small size but strong; Low consumption & High Efficiency;3. Long time continuous working, lifespan about 30000 hours

  • Model : DC50D
  • Rated Voltage :
  • Max Static Head : DC12V/24V
  • Max Flow rate : 108mmX109mmX56.7mm
  • Input Power :
  • Inlet Outer Diameter :
  • Outlet Outer Diameter :
  • Size :
  • Weight :
  • Material :
  • Waterproof :
  • Noise :
  • Liquid Temperature :

Main Features:

1. Brushless DC motor, also known as EC motor; Magnetic Driven;
2. Small size but strong; Low consumption & High Efficiency;
3. Long time continuous working, lifespan about 30000 hours;
4. Safety - no spark, Explosion - Proof; Low noise about 40dB;
5. Submersible, 100% waterproof;
6. Wide range of working voltage; Maintenance - free;
7. Can be used to pump water, oil, acid and alkali solution;


Specification:

Dimension and weight
108mmx109mmx56.7mm;480g
External diameter of outlet
20mm
External diameter of inlet
20mm
Driving mechanism
Brush-less, magnetic isolated design
Material of pump shell
ABS,PES/SPS/PPS/PA66+30%GF (Optional)
Condition of use
Can continuously work, submersible or land use (not self-priming)
Suitable medium
Water, oil, acid/ alkaline liquids(Pre-test needed for special liquid)
Max working temperature
60℃ or 100℃
Power consumption
2.5W~86.4W
Rated voltage
12Vdc or 24Vdc
Max load current
4.5A
Max horizontal flow rate
45L/MIN
Max static lift
8M
Life span
>30,000hrs

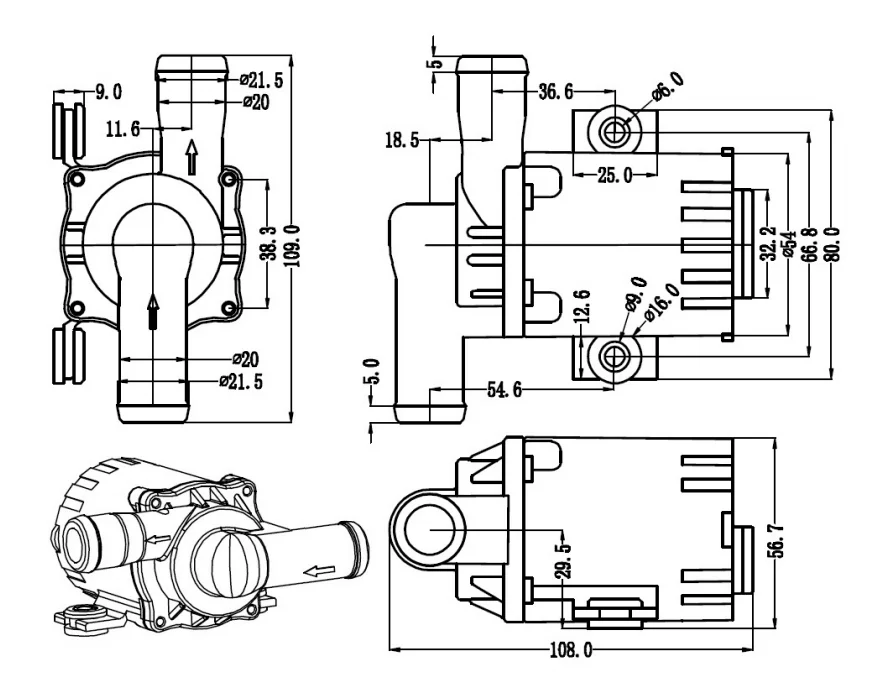

Dimension:

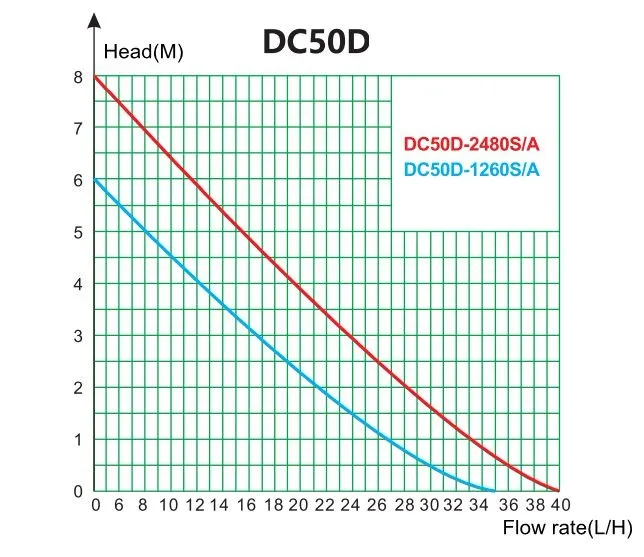

Flow Rate:

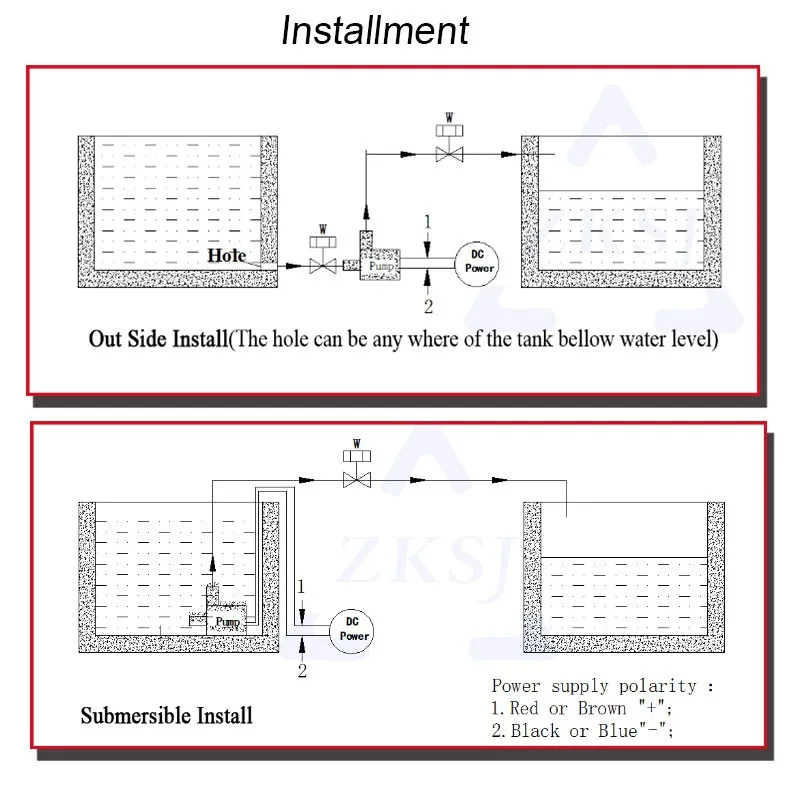

How to Install

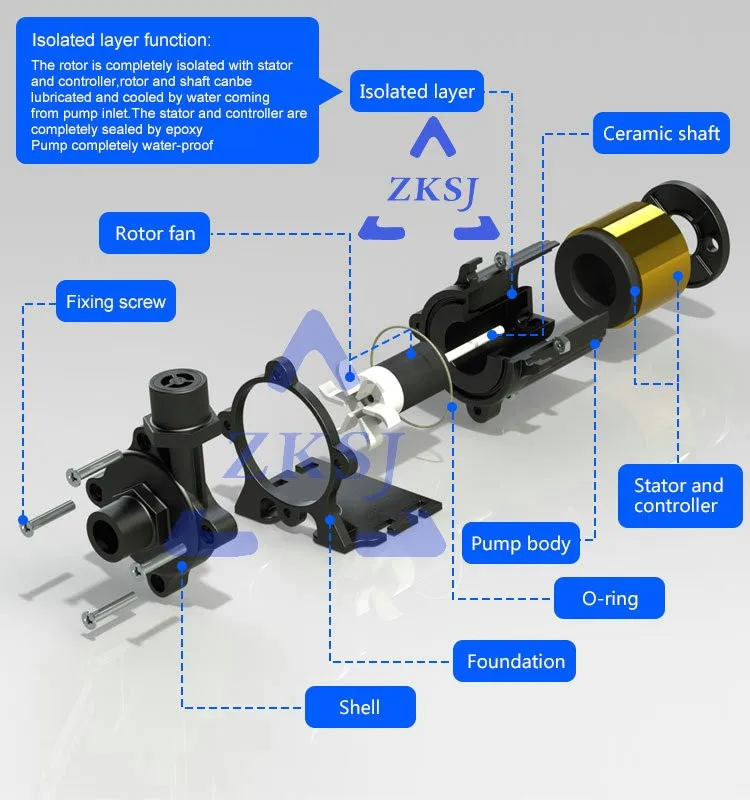

Pump Structure:
