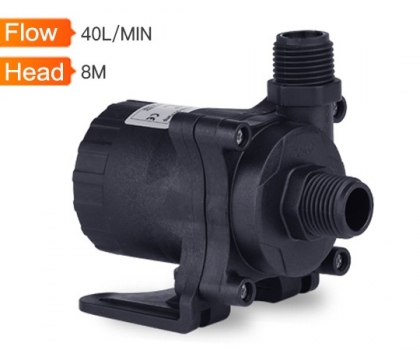

3 Phase Brushless DC Pump DC50G
3 Phase Brushless DC Pump DC50G
3 Phase Brushless DC Pump DC50G
3 Phase Brushless DC Pump DC50G

3 Phase Brushless DC Pump DC50G

2021-09-07 15:20:12   80

Main Feature:1. Brushless DC motor, also known as EC motor; Magnetic Driven;2. Small size but strong; Low consumption & High Efficiency;3. Long time continuous working, lifespan about 30000 hours;

  • Model : DC50G
  • Rated Voltage :
  • Max Static Head : DC12V/24V
  • Max Flow rate : 99.4mmX92.5mmX69.6mm
  • Input Power :
  • Inlet Outer Diameter :
  • Outlet Outer Diameter :
  • Size :
  • Weight :
  • Material :
  • Waterproof :
  • Noise :
  • Liquid Temperature :

Main Feature:

1. Brushless DC motor, also known as EC motor; Magnetic Driven;
2. Small size but strong; Low consumption & High Efficiency;
3. Long time continuous working, lifespan about 30000 hours;
4. Safety - no spark, Explosion - Proof; Low noise about 40dB;
5. Submersible, 100% waterproof;
6. Wide range of working voltage; Maintenance - free;
7. Can be used to pump water, oil, acid and alkali solution;

Specification:

Dimension and weight99.4mmx92.5mmx69.6mm;480g
External diameter of outlet1/2" thread(M20)
External diameter of inlet1/2" thread(M20)
Driving mechanismBrush-less, magnetic isolated design
Material of pump shellABS,PES/SPS/PPS/PA66+30%GF (Optional)
Condition of useCan continuously work, submersible or land use (not self-priming)
Suitable mediumWater, oil, acid/ alkaline liquids(Pre-test needed for special liquid)
Max working temperature60℃(for T sub-series) or 100℃(for S/A sub-series)
Power consumption2.5W~48W(for T sub-series) or 2.5W~86.4W(for S/A sub-series)
Rated voltage12Vdc or 24Vdc
Working voltage range5Vdc ~ 14Vdc or 5Vdc ~ 26Vdc
Max load current2.0A (for T sub-series) or 4.5A(for S/A sub-series)
Max horizontal flow rate32L/MIN(for T sub-series) or 40L/MIN(for S/A sub-series)
Max static lift4M(for T sub-series) or 8M(for S/A sub-series)
Noise class<40dB
Waterproof classIP68(suitable for submersible installation)
Life span>30,000hrsIP68(suitable for submersible installation)
Power supplySuitable solar panel, batteries, adapter or other power source
Protection functionDry-run protection, lock protection(customized function)
Power regulation functionSpeed adjustable by PWM signal, 0~5V analog signal or potentiometer (functions are optional for customization)
