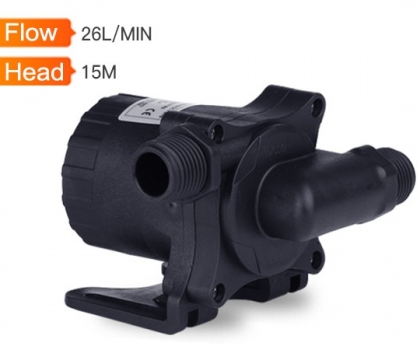

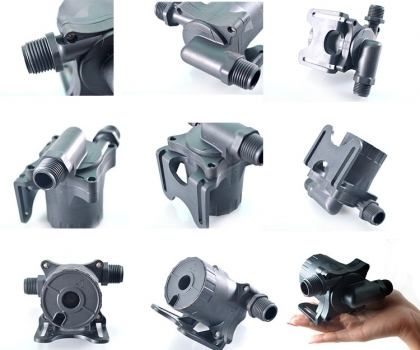

3 PHASES DC water pump - DC50F
3 PHASES DC water pump - DC50F
3 PHASES DC water pump - DC50F
3 PHASES DC water pump - DC50F

3 PHASES DC water pump - DC50F

2021-09-07 15:19:14   117

Main Feature:1. Sine Wave Silent Technology, Noise less than 40dB;2. Default with water shortage and stuck protection functions;3. Brushless DC motor, Magnetic Driven, Small size & High Efficiency

  • Model : DC50F
  • Rated Voltage :
  • Max Static Head : DC12/24V
  • Max Flow rate : 109mmx91mmx71.5mm
  • Input Power :
  • Inlet Outer Diameter :
  • Outlet Outer Diameter :
  • Size :
  • Weight :
  • Material :
  • Waterproof :
  • Noise :
  • Liquid Temperature :

Main Feature:

1. Sine Wave Silent Technology, Noise less than 40dB;
2. Default with water shortage and stuck protection functions;
3. Brushless DC motor, Magnetic Driven, Small size & High Efficiency;
4. Long time continuous working, lifespan more than 20000 hours;
5. Safety - no spark, Explosion-proof, IP68, 100% waterproof;
6. Can be used to pump water, oil, acid and alkali solution.


Specification:

Description
12v 24v micro circulating oil pump 15M Head 1560LPH
Model No.
DC50F-24150S
Inlet (Out diameter)
1/2 inch thread(20mm)
Outlet (Out diameter):
1/2 inch thread(20mm)
Size:
109mm * 91mm * 71.5mm
Weight
 about 500g
Max Static Head:
15M
Max Flow Rate:
1560L/H
Max. working temp.:
100℃
Default Plug
No Plug (Can be customized)
Self-priming:
No
Power supply
Solar panel, Battery, adaptor,Power Module
