Main Features:1. Brushless DC motor, also known as EC motor; Magnetic Driven;2. Small size but strong; Low consumption & High Efficiency;3. Long time continuous working, lifespan about 30000 hours

  • Model : DC50C
  • Rated Voltage :
  • Max Static Head : 12-24V
  • Max Flow rate : 106mmx97.5mmx71.5mm
  • Input Power :
  • Inlet Outer Diameter :
  • Outlet Outer Diameter :
  • Size :
  • Weight :
  • Material :
  • Waterproof :
  • Noise :
  • Liquid Temperature :

Main Features:

1. Brushless DC motor, also known as EC motor; Magnetic Driven;
2. Small size but strong; Low consumption & High Efficiency;
3. Long time continuous working, lifespan about 30000 hours;
4. Safety - no spark, Explosion - Proof; Low noise about 40dB;
5. Submersible, 100% waterproof;
6. Wide range of working voltage; Maintenance - free;
7. Can be used to pump water, oil, acid and alkali solution;

Specification:

Model No.: DC50C-2480A

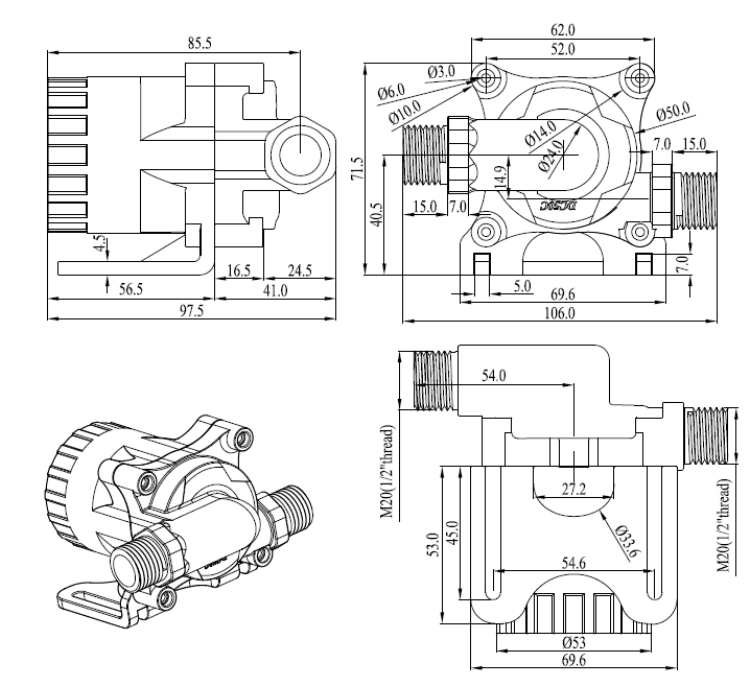

Dimension and weight
106mmx97.5mmx71.5mm;480g
External diameter of outlet
1/2" thread(M20)
External diameter of inlet
1/2" thread(M20)
Material of pump shell
ABS,PES/SPS/PPS/PA66+30%GF (Optional)
Max working temperature
100℃(for S/A sub-series)
Power consumption
2.5W~86.4W
Rated voltage
24V
Working voltage range
5Vdc ~ 26Vdc

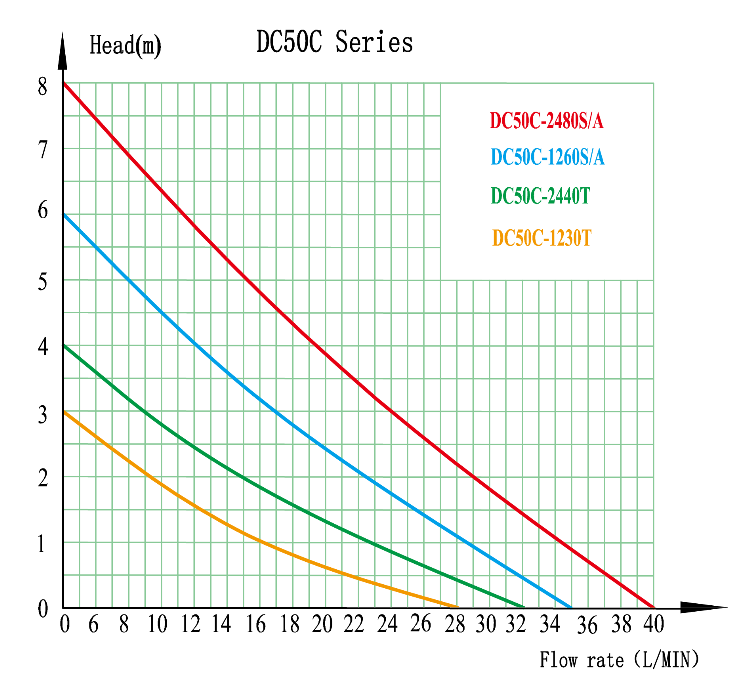

Max horizontal flow rate
40L/min
Max static lift
8M
Speed-adjustable
Yes
