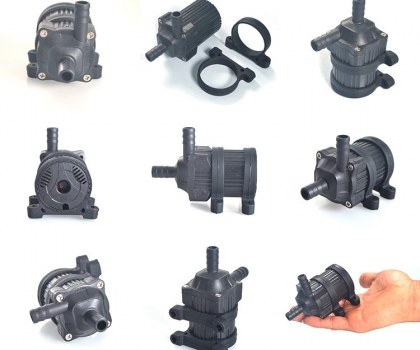

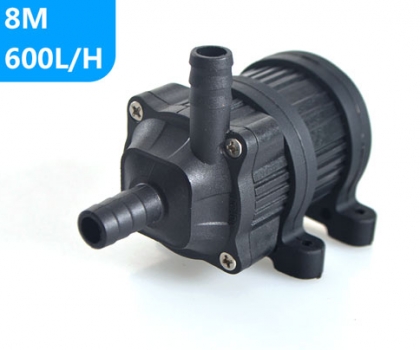

Micro Water Pump - DC40D
Micro Water Pump - DC40D
Micro Water Pump - DC40D
Micro Water Pump - DC40D
Micro Water Pump - DC40D
Micro Water Pump - DC40D

Micro Water Pump - DC40D

2021-09-06 16:35:03   80

Main Features:1. Brushless DC motor, also known as EC motor; Magnetic Driven;2. Small size but strong; Low consumption & High Efficiency;3. Long time continuous working, lifespan about 30000 hours

  • Model : DC40D
  • Rated Voltage :
  • Max Static Head : DC12V/24V
  • Max Flow rate : 90mm*60.8mm*41.5mm
  • Input Power : 10mm
  • Inlet Outer Diameter : 10mm
  • Outlet Outer Diameter :
  • Size :
  • Weight :
  • Material :
  • Waterproof :
  • Noise :
  • Liquid Temperature :

Main Features:

1. Brushless DC motor, also known as EC motor; Magnetic Driven;
2. Small size but strong; Low consumption & High Efficiency;
3. Long time continuous working, lifespan about 30000 hours;
4. Safety - no spark, Explosion - Proof; Low noise about 40dB;
5. Submersible, 100% waterproof;
6. Wide range of working voltage; Maintenance - free;
7. Can be used to pump water, oil, acid and alkali solution;

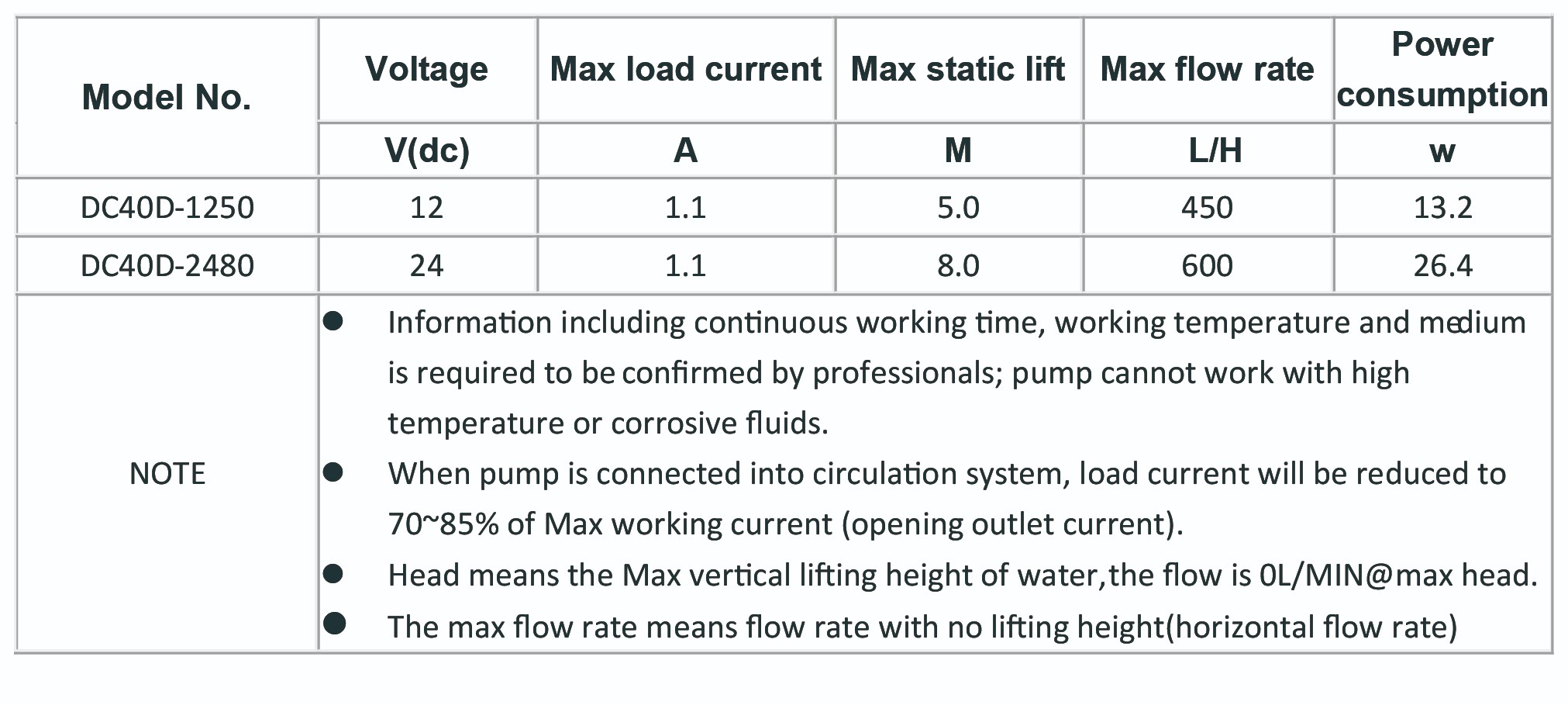

Parameter:

Model: DC40D

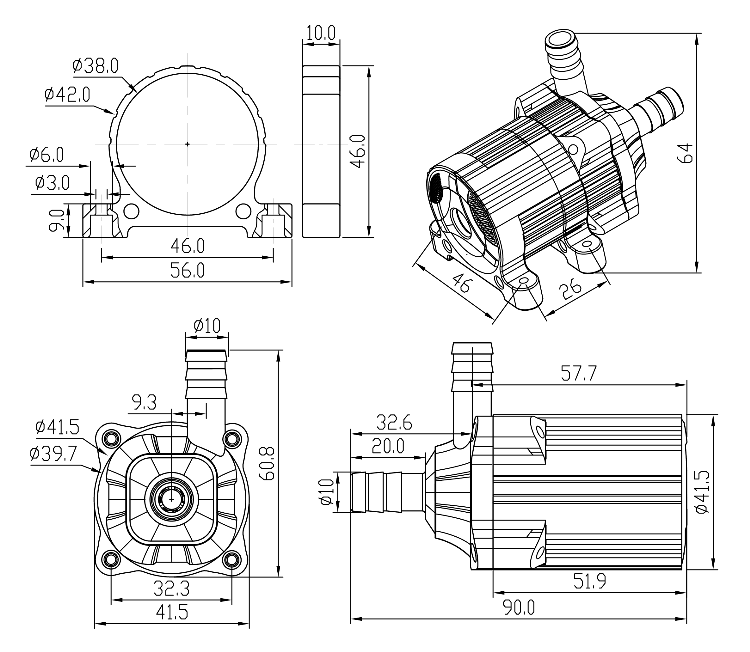

Size: 90mm*60.8mm*41.5mm
Weight: 220g
External diameter of outlet: 10mm
External diameter of inlet: 10mm
Material: ABS,PES/SPS/PPS/PA66+30%GF (Optional)
Max working temperature: 60℃
Power consumption: 2.5W~28.8W
Rated voltage: 12Vdc or 24Vdc
Working voltage range: 5Vdc ~ 12Vdc or 5Vdc ~ 24Vdc
Max load current: 1.2A

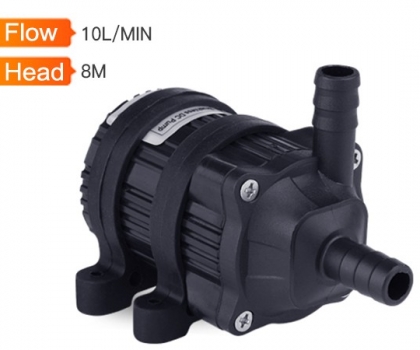

Max horizontal flow rate: 10L/MIN
Max static lift: 8M
Noise class: <40dB
Life span: Can be more than 30,000hrs
