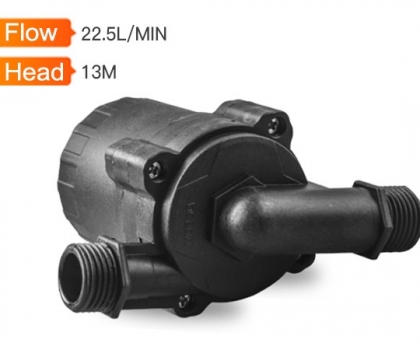

3 Phase Brushless DC Pump DC50M

2021-09-06 16:39:25 60

Main Feature:1. Brushless DC motor, also known as EC motor; Magnetic Driven;2. Small size but strong; Low consumption & High Efficiency;3. Long time continuous working, lifespan about 30000 hours;

Model : DC50M
Rated Voltage :
Max Static Head : DC12V/24V
Max Flow rate : 92.9mmx107mmx62.9mm
Input Power :
Inlet Outer Diameter :
Outlet Outer Diameter :
Size :
Weight :
Material :
Waterproof :
Noise :
Liquid Temperature :

Detail Specification

Main Feature:

1. Brushless DC motor, also known as EC motor; Magnetic Driven;
2. Small size but strong; Low consumption & High Efficiency;
3. Long time continuous working, lifespan about 30000 hours;
4. Safety - no spark, Explosion - Proof; Low noise about 40dB;
5. Submersible, 100% waterproof;
6. Wide range of working voltage; Maintenance - free;
7. Can be used to pump water, oil, acid and alkali solution;
8. Variety Power: DC electric source, Battery or Solar Panel;
9. Soft Start with Low in-rush current, great for the Solar System.

Detailed Parameter:

Model: DC50M
Dimension and weight		92.9mmx107mmx62.9mm;480g
External diameter of outlet		1/2” thread(20mm)
External diameter of inlet		1/2” thread(20mm)
Material of pump shell		ABS,PES/SPS/PPS/PA66+30%GF (Optional)
Max working temperature		100℃(for S/A sub-series)
Power consumption		52W~80W(for S/A sub-series)
Rated voltage		12Vdc or 24Vdc
Working voltage range		5Vdc ~ 14Vdc or 5Vdc ~ 26Vdc
Max horizontal flow rate		22.5L/MIN(for S/A sub-series)
Noise class		<40dB
Max static lift		13M(for S/A sub-series)

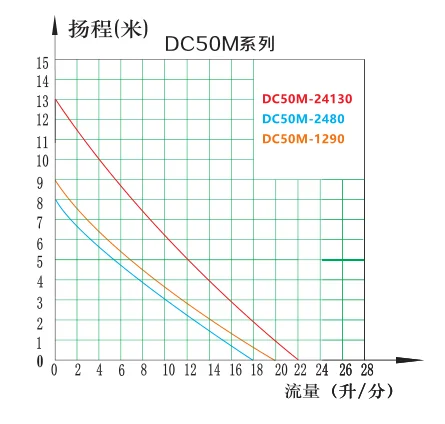

Flow Rate:

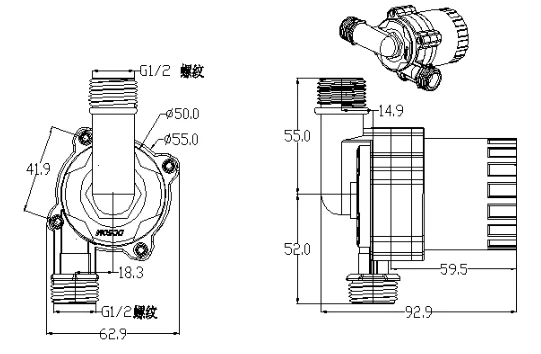

Dimension:

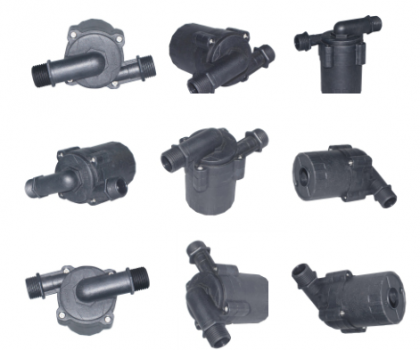

How to Install
