1Model No.DC55JE-12240PWMDC55JE-12240VRDC55JE-12240SDC55JE-24320PWMDC55JE-24320VRDC55JE-24320SPWM:PWM speed regulation （50-800HZ/ 5V） VR:0~5V/potentiometer speed regulation S:fixed speed,no speed chan

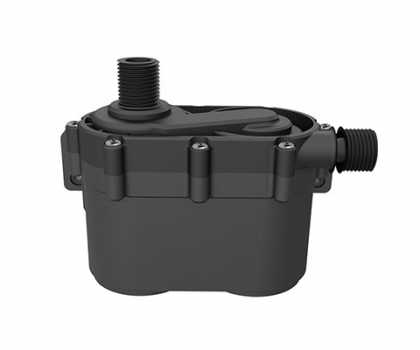

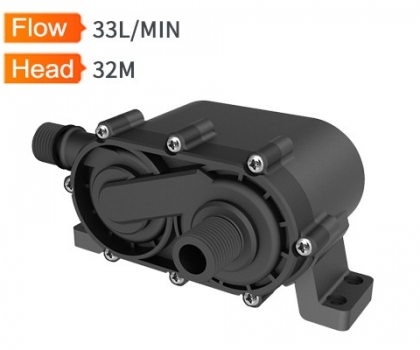

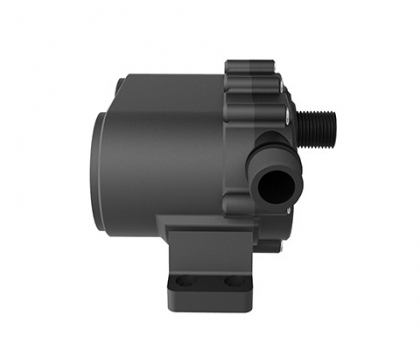

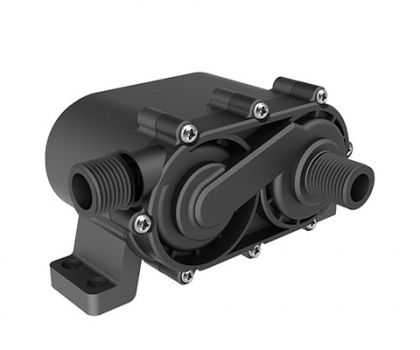

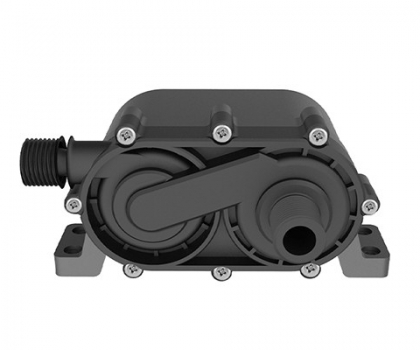

Model : DC55JE
Rated Voltage : DC12V 24V
Max Static Head : 32M
Max Flow rate : 2000L/H
Input Power : 150W(160W)
Inlet Outer Diameter : G1/2
Outlet Outer Diameter : G1/2
Size : 162mm*77mm*112mm
Weight : 1.2kg
Material : PPS+20%FG(optional)
Waterproof : IP68
Noise : Less than 35dB
Liquid Temperature : 0-100°C

Detail Specification

1	Model No.	DC55JE-12240PWM DC55JE-12240VR DC55JE-12240S	DC55JE-24320PWM DC55JE-24320VR DC55JE-24320S	PWM:PWM speed regulation （50-800HZ/ 5V） VR:0~5V/potentiometer speed regulation S:fixed speed,no speed change
2	Rated Voltage	12V DC	24V DC
3	Working Voltage	5-12V	14-30V	Within this range, the pump can work normally.
4	Rated Current	8.3A(9.2A)	6.3A(6.7A)	Closed outlet current (open pumping current)
5	Input power	100W(110W)	150W(160W)	Closed outlet power (open pumping power)
6	Max. Flow rate	1800L/H	2000L/H	Flow rate without lifting height(horizontal flow rate)
7	Max. head	24M	32M	Static head
8	Mini input power supply	12V-10A	24V-7A
