2021-09-06 15:26:14   352

Detailed specification:1Liquid TypeOil, water, and other liquid2Liquid Temperature-30°-100°3-phase controller inside for non-submersible/controller outside for submersible3Speed regulation (optional)-

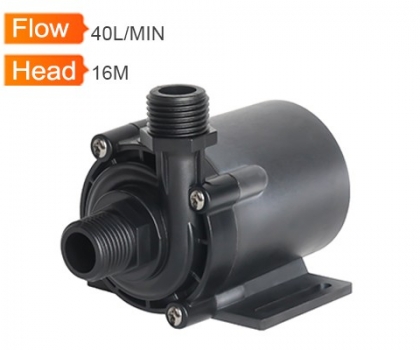

  • Model : DC55E
  • Rated Voltage : DC12V 24V 36V
  • Max Static Head : 16M
  • Max Flow rate : 2400L/H
  • Input Power : 65W(80W)
  • Inlet Outer Diameter : 20mm(thread)
  • Outlet Outer Diameter : 20mm(thread)

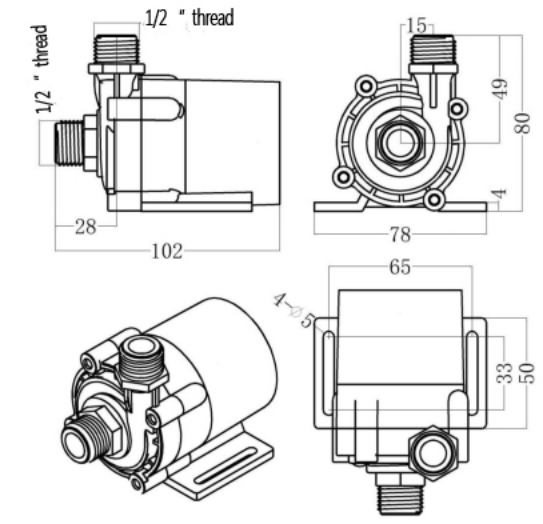

  • Size : 102mm*78mm*80mm
  • Weight : 893g
  • Material : ABS,PES,SPS,PPS,PA66+30%GF(Optional)
  • Waterproof : IP68
  • Noise : Less than 40dB
  • Liquid Temperature : -30°C -100°C

Detailed specification:


1

Liquid Type

Oil, water, and other liquid


2


Liquid Temperature

-30°C-100°C

3-phase controller inside for non-submersible/

controller outside for submersible


3


Speed regulation (optional)

- PWM amplitude 5V 50-800HZ  Can be customized

- 0-5V analog signal

- Potentiometer: The resistance range 4.7K~20K

4

Power

DC Power Supply, Solar Panel, Battery




1



Product model


DC55E-12120PWM

DC55E-12120VR

DC55E-12120S


DC55E-24120PWM

DC55E-24120VR

DC55E-24120S


DC55E-24160PWM

DC55E-24160VR

DC55E-24160S


DC55E-36160PWM

DC55E-36160VR

DC55E-36160S


PWM: Speed regulation by PWM

(50-800HZ/ 5V)

VR:Speed regulation by 0-5V analog signal or potentiometer

SFixed rotational speed

2

Rated Voltage

12V DC

24V DC

24V DC

36V DC


3Working voltage

5-12V

12-30V

12-30V

5-40V

Within this range, pump can work normally

4

Rated current

3.5A(4.5A)

1.4A(2.2A)

2.7A(3.3A)

1.8A(2.2A)

Closed outlet current (open pumping current)

5

Input Power

42W(54W)

42W(54W)

65W(80W)

65W(80W)

Closed outlet power (open pumping power)

6

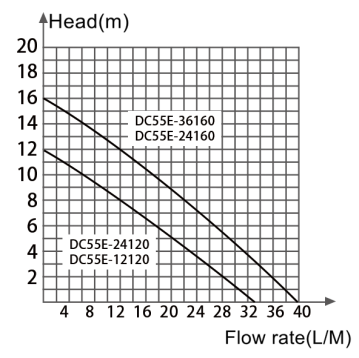

Max. Flow rate

2000L/H

2000L/H

2300L/H

2400L/H

Flow rate without connecting pipe

7

Max. Head

12M

12M

16M

16M

Static head

8

Min. Input

power supply

12V-5A

24V-4A

24V-4A

36V-3A
