Main Feature:1. Brushless DC motor, smart size2. High head3. Long life span4. Lower power consumption, low noise

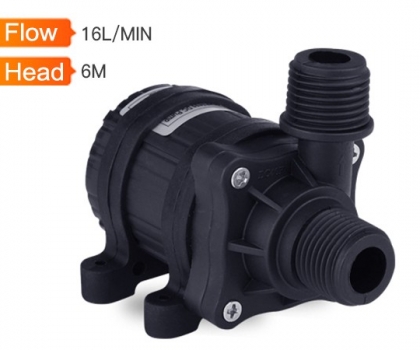

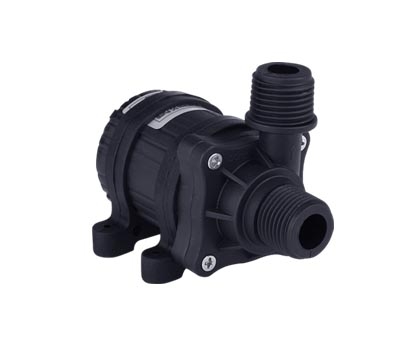

  • Model : DC40F
  • Rated Voltage : DC12V 18V 24V
  • Max Static Head : 4M/5M/6M

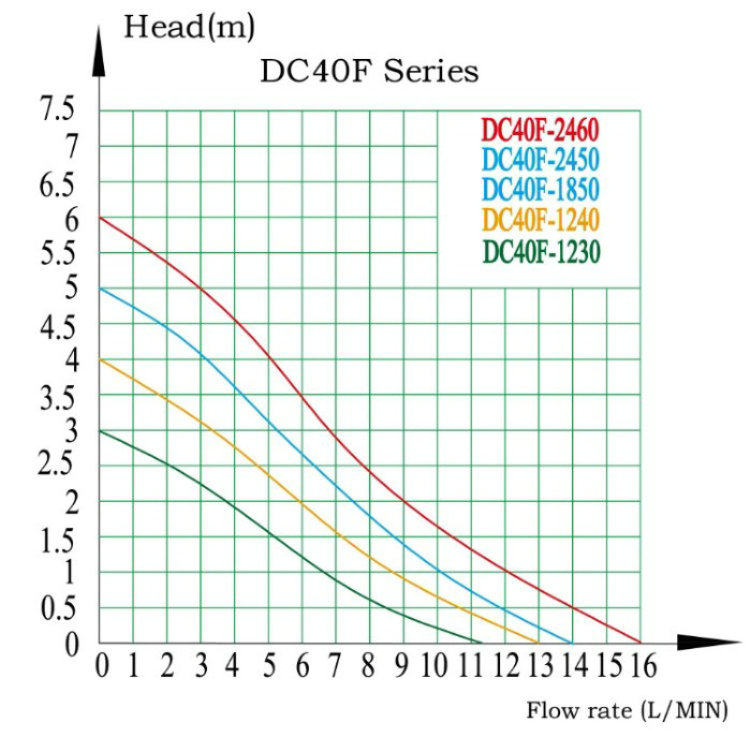

  • Max Flow rate : 960L/H
  • Input Power :
  • Inlet Outer Diameter : 20mm(thread)
  • Outlet Outer Diameter : 20mm(thread)

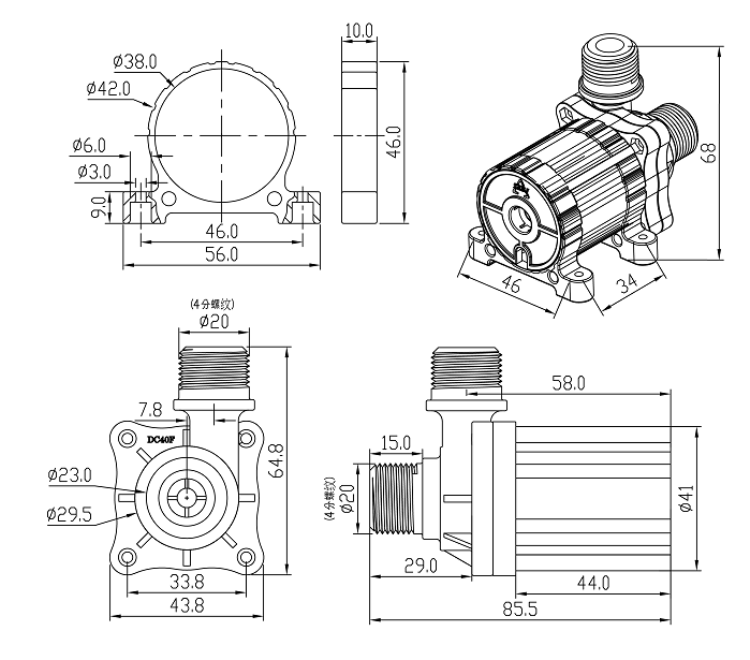

  • Size : 88.5*64.8mm*43.8mm
  • Weight : 230g
  • Material : PES/SPS/PPS/PA66+30%FB(Optional)
  • Waterproof : IP68
  • Noise : <40dB
  • Liquid Temperature : 0-60°C

Main Feature:

1. Brushless DC motor, smart size

2. High head

3. Long life span

4. Lower power consumption, low noise
