Detailed specification:1Liquid TypeOil, water, and other liquid2Liquid Temperature-30°-100°3-phase controller inside for non-submersible/controller outside for submersible3Speed regulation (optional)-

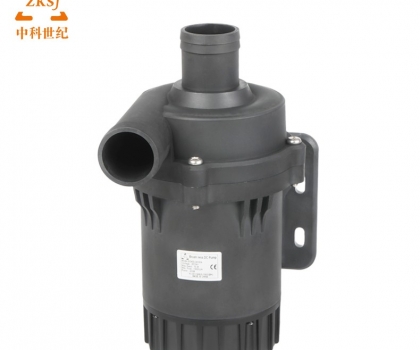

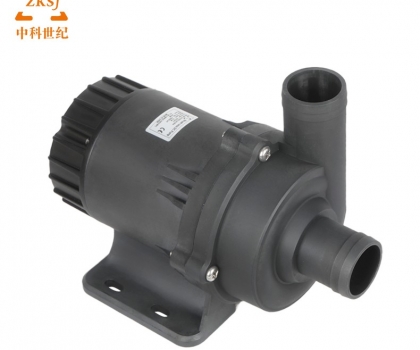

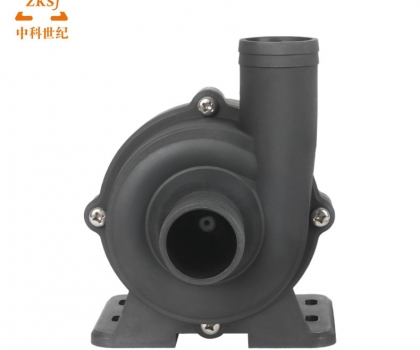

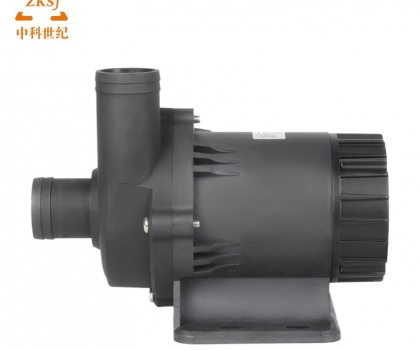

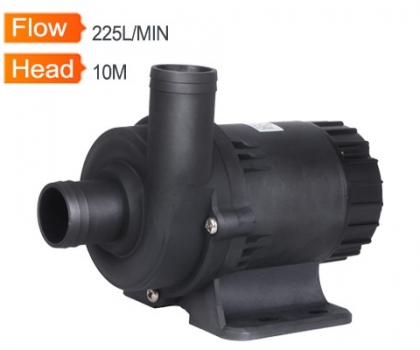

  • Model : DC85D
  • Rated Voltage : DC12V 24V 36V
  • Max Static Head : 10M
  • Max Flow rate : 13500L/H
  • Input Power : 170W(200W)
  • Inlet Outer Diameter : 38mm
  • Outlet Outer Diameter : 38mm

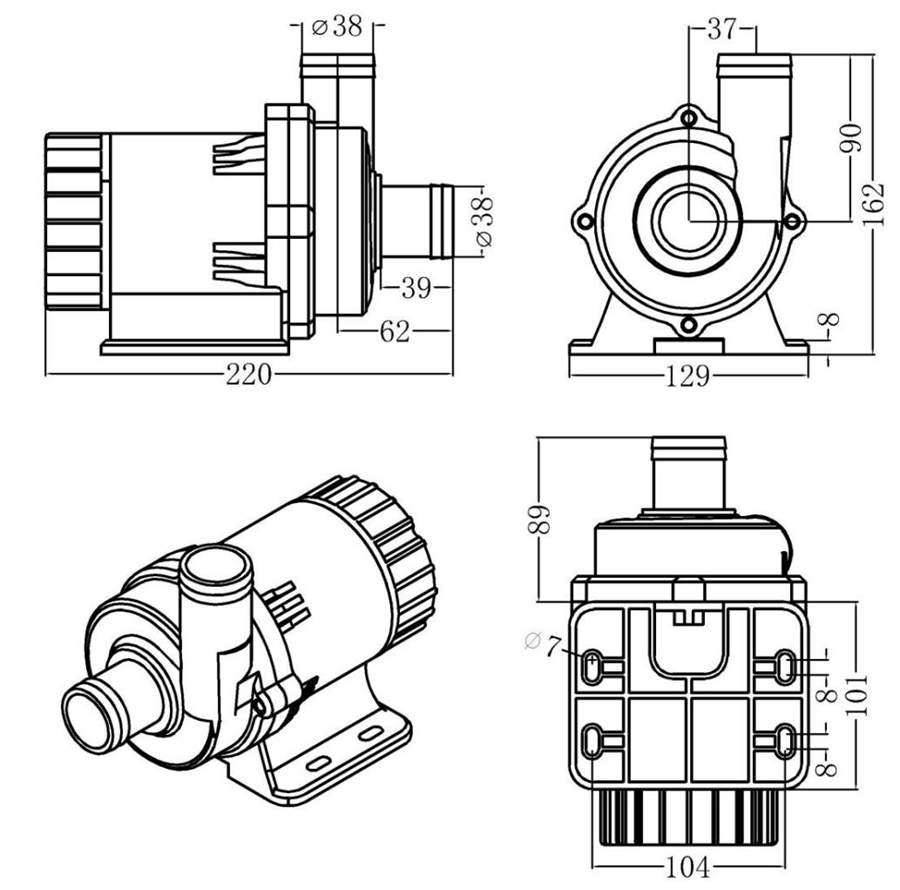

  • Size : 185mm*100mm*136mm
  • Weight : 4.5kg
  • Material : ABS,PES,SPS,PPS,PA66+30%GF(Optional)
  • Waterproof : IP68
  • Noise : Less than 40dB
  • Liquid Temperature : -30°C-100°C

Detailed specification:


1

Liquid Type

Oil, water, and other liquid


2


Liquid Temperature

-30°-100°C

3-phase controller inside for non-submersible/

controller outside for submersible


3


Speed regulation (optional)

- PWM amplitude 5V 50-800HZ  Can be customized

- 0-5V analog signal

- Potentiometer: The resistance range 4.7K~20K

4

Power

DC Power Supply, Solar Panel, Battery





1



Product model


DC85D-1280PWM

DC85D-1280VR

DC85D-1280S


DC85D-2480PWM

DC85D-2480VR

DC85D-2480S



DC85D-24100PWM

DC85D-24100VR

DC85D-24100S



DC85D-36100PWM

DC85D-36100VR

DC85D-36100S


PWM: Speed regulation by PWM(50-800HZ/ 5V)

VR:Speed regulation by 0-5V analog signal or potentiometer

SFixed rotational speed

2

Rated Voltage

12V DC

24V DC

24V DC

36V DC


3Working voltage

6-14V

12-28V

12-28V

28-40V

Within this range, pump can work normally

4

Rated current

11A(12.5A)


5.4A(6.3A)

7A(8.3A)


4.7A(5.5A)


Closed outlet current (open pumping current)

5

Input Power

130W(150W)


130W(150W)

170W(200W)


170W(200W)


Closed outlet power (open pumping power)

6

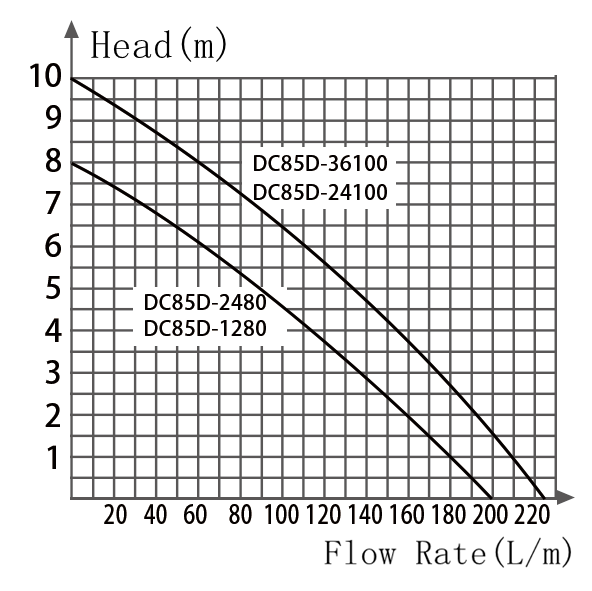

Max. Flow rate

12000L/H


12000L/H

13500L/H


13500L/H


Flow rate without connecting pipe

7

Max. Head

8M

8M

10M

10M

Static head

8

Min. Input

power supply

12V-13A

24V-7A

24V-9A

36V-6A



Additional Function Instruction:

1

K-Jam protection

When the pump is stuck, it will stop working

2

Dry run/water shortage protection

When the pump is short of water or idling, the pump will cyclically stop (8 seconds) and run (2 seconds), and the protection strategy can be customized

3

Overloading protection

When the voltage is unstable or exceeds the rated power, the pump stops running.

4

Power reverse connection

Wrong connection of the power supply(positive and negative), the water pump stops running, and then re-connected, can work normally.

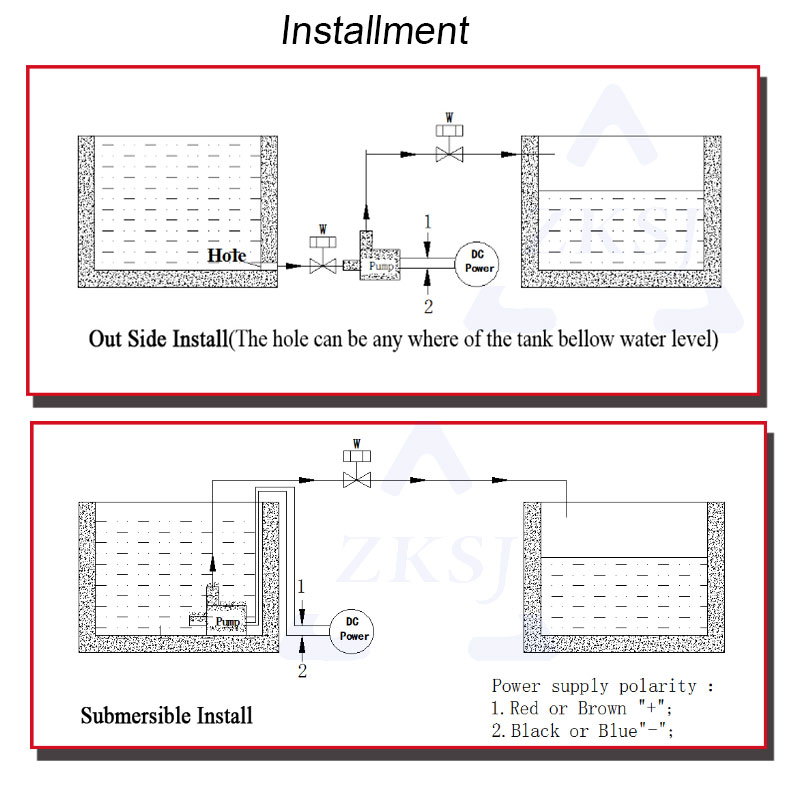

5

Controller inside pump

For external use

6

Controller outside pump

Suitable for high temperature or corrosive solution submersible installation
