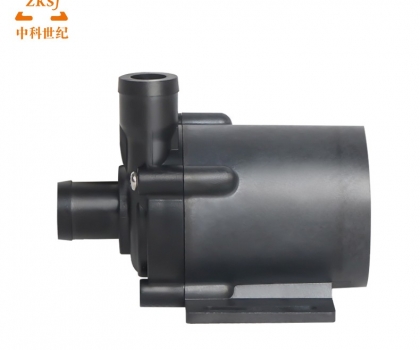

ZKSJ Brushless DC Pump DC55B
ZKSJ Brushless DC Pump DC55B
ZKSJ Brushless DC Pump DC55B
ZKSJ Brushless DC Pump DC55B
ZKSJ Brushless DC Pump DC55B
ZKSJ Brushless DC Pump DC55B
ZKSJ Brushless DC Pump DC55B
ZKSJ Brushless DC Pump DC55B
ZKSJ Brushless DC Pump DC55B
ZKSJ Brushless DC Pump DC55B

ZKSJ Brushless DC Pump DC55B

2021-11-25 16:44:15   313

Detailed specification:1Liquid TypeOil, water, and other liquid2Liquid Temperature-30°-100°3-phase controller inside for non-submersible/controller outside for submersible3Speed regulation (optional)-

  • Model : DC55B
  • Rated Voltage : DC12V 24V 36V
  • Max Static Head : 16M
  • Max Flow rate : 2400L/H
  • Input Power : 65W(80W)
  • Inlet Outer Diameter : 20mm
  • Outlet Outer Diameter : 20mm

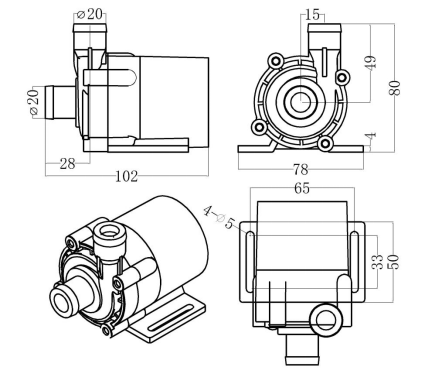

  • Size : 102mm*78mm*80mm
  • Weight : 893g
  • Material : ABS,PES,SPS,PPS,PA66+30%GF(Optional)
  • Waterproof : IP68
  • Noise : Less than 40dB
  • Liquid Temperature : -30°C -100°C

Detailed specification:


1

Liquid Type

Oil, water, and other liquid


2


Liquid Temperature

-30°C-100°C

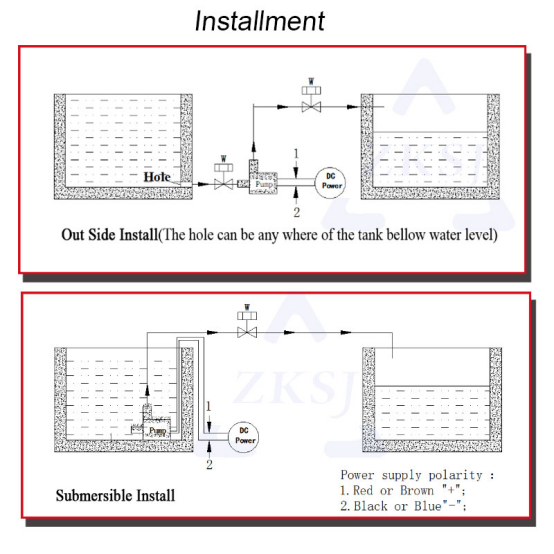

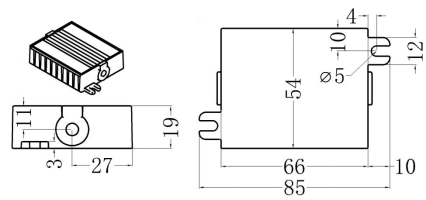

3-phase controller inside for non-submersible/

controller outside for submersible


3


Speed regulation (optional)

- PWM amplitude 5V 50-800HZ  Can be customized

- 0-5V analog signal

- Potentiometer: The resistance range 4.7K~20K

4

Power

DC Power Supply, Solar Panel, Battery




1



Product model


DC55B-12120PWM

DC55B-12120VR

DC55B-12120S


DC55B-24120PWM

DC55B-24120VR

DC55B-24120S


DC55B-24160PWM

DC55B-24160VR

DC55B-24160S


DC55B-36160PWM

DC55B-36160VR

DC55B-36160S


PWM: Speed regulation by PWM

(50-800HZ/ 5V)

VR:Speed regulation by 0-5V analog signal or potentiometer

SFixed rotational speed

2

Rated Voltage

12V DC

24V DC

24V DC

36V DC


3Working voltage

5-12V

5-30V

5-30V

5-40V

Within this range, pump can work normally

4

Rated current

3.5A(4.5A)

1.4A(2.2A)

2.7A(3.3A)

1.8A(2.2A)

Closed outlet current (open pumping current)

5

Input Power

42W(54W)

42W(54W)

65W(80W)

65W(80W)

Closed outlet power (open pumping power)

6

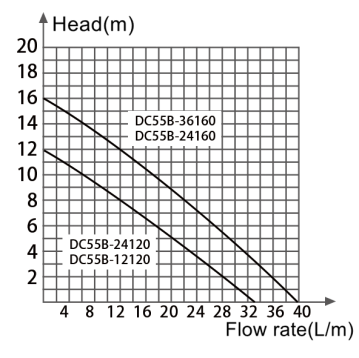

Max. Flow rate

2000L/H

2000L/H

2400L/H

2400L/H

Flow rate without connecting pipe

7

Max. Head

12M

12M

16M

16M

Static head

8

Min. Input

power supply

12V-5A

24V-3A

24V-4A

36V-3A
