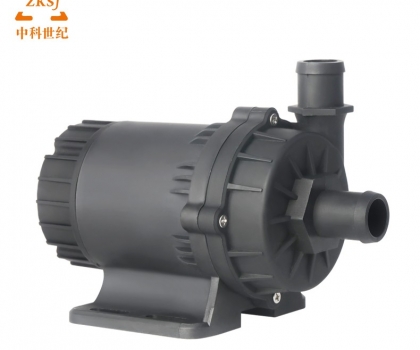

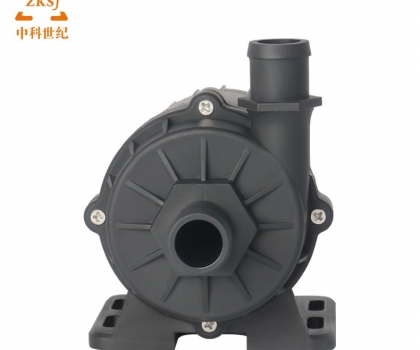

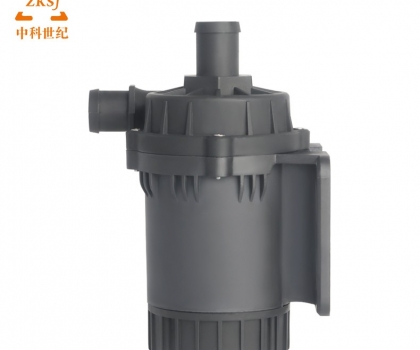

ZKSJ Brushless DC Pump DC60D-1
ZKSJ Brushless DC Pump DC60D-1
ZKSJ Brushless DC Pump DC60D-1
ZKSJ Brushless DC Pump DC60D-1
ZKSJ Brushless DC Pump DC60D-1
ZKSJ Brushless DC Pump DC60D-1
ZKSJ Brushless DC Pump DC60D-1
ZKSJ Brushless DC Pump DC60D-1

ZKSJ Brushless DC Pump DC60D-1

2021-09-06 15:28:41   216

Detailed specification:1Liquid TypeOil, water, and other liquid2Liquid Temperature-30°-100°3-phase controller inside for non-submersible/controller outside for submersible3Speed regulation (optional)-

  • Model : DC60D(Updated version)
  • Rated Voltage : DC12V 24V 36V

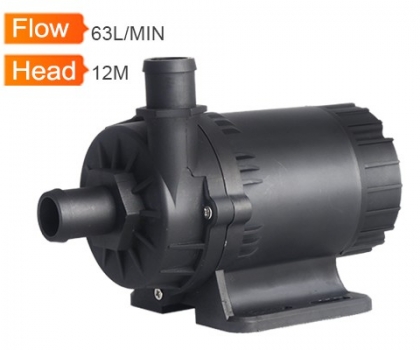

  • Max Static Head : 12M
  • Max Flow rate : 3800L/H
  • Input Power : 108W(120W)
  • Inlet Outer Diameter : 20mm
  • Outlet Outer Diameter : 20mm

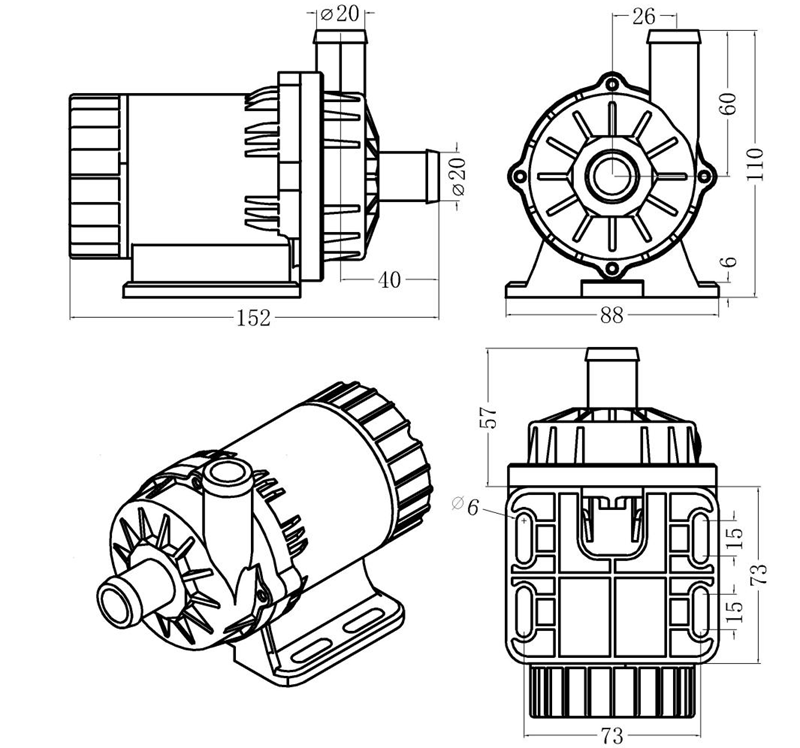

  • Size : 152mm*88mm*110mm
  • Weight : 893g
  • Material : ABS,PES,SPS,PPS,PA66+30%GF(Optional)
  • Waterproof : IP68
  • Noise : Less than 40dB
  • Liquid Temperature : 0-100°C

Detailed specification:


1

Liquid Type

Oil, water, and other liquid


2


Liquid Temperature

-30°-100°

3-phase controller inside for non-submersible/

controller outside for submersible


3


Speed regulation (optional)

- PWM amplitude 5V 50-800HZ  Can be customized

- 0-5V analog signal

- Potentiometer: The resistance range 4.7K~20K

4

Power

DC Power Supply, Solar Panel, Battery




1



Product model


DC60D-12100PWM

DC60D-12100VR

DC60D-12100S


DC60D-24120PWM

DC60D-24120VR

DC60D-24120S


DC60D-36120PWM

DC60D-36120VR

DC60D-36120S


PWM: Speed regulation by PWM(50-800HZ/ 5V)

VR:Speed regulation by 0-5V analog signal or potentiometer

SFixed rotational speed

2

Rated Voltage

12V DC

24V DC

36V DC


3Working voltage

5-12V

5-28V

5-40V

Within this range, pump can work normally

4

Rated current

5.4A(6.6A)

4.5A(5A)

3A(3.3A)

Closed outlet current (open pumping current)

5

Input Power

65W(80W)

108W(120W)

108W(120W)

Closed outlet power (open pumping power)

6

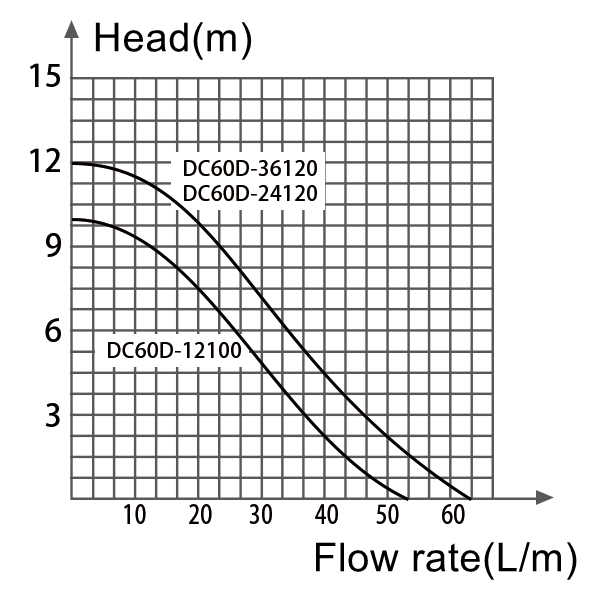

Max. Flow rate

3200L/H

3800L/H

3800L/H

Flow rate without connecting pipe

7

Max. Head

10M

12M

12M

Static head

8

Min. Input

power supply

12V-7A

24V-6A

36V-4A
