Product Appearance SpecificationsNO.ItemSpecs1Dimension and weight84.5mm*61.8mm*43.8mm; 220g2Installation dimension84.5mm*65mm*46mm;3External diameter of outlet8MM4External diameter of inlet11MM5

  • Model : DC40H
  • Rated Voltage :
  • Max Static Head : DC12V/24V
  • Max Flow rate : 84.5mm*61.8mm*43.8mm
  • Input Power : 8mm
  • Inlet Outer Diameter : 11mm
  • Outlet Outer Diameter :
  • Size :
  • Weight :
  • Material :
  • Waterproof :
  • Noise :
  • Liquid Temperature :

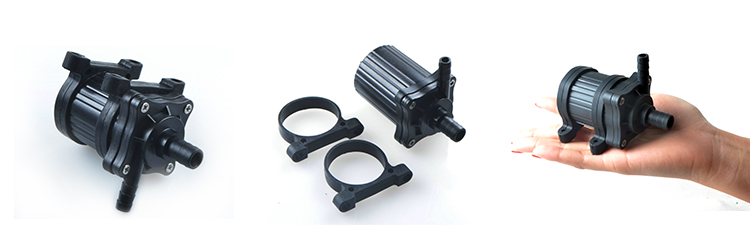

Product Appearance

图片关键词

 Specifications

NO.

Item

Specs

1

Dimension and weight

84.5mm*61.8mm*43.8mm; 220g

2

Installation dimension

84.5mm*65mm*46mm;

3

External diameter of outlet

8MM

4

External diameter of inlet

11MM

5

Driving mechanism

Brush-less, magnetic isolated design

6

Material of pump shell

ABS,PES/SPS/PPS/PA66+30%GF (Optional)

7

Condition of use

Can continuously work, submersible or land use (not self-priming)

8

Suitable medium

Water, oil, or normal acid/ alkaline liquids
(test needed for special liquid)

9

Max working temperature

60

10

Power consumption

2.5W~28.8W

11

Rated voltage

12Vdc or 24Vdc

12

Working voltage range

5Vdc ~ 12Vdc(Max 14v) or 5Vdc ~ 24Vdc(Max 26v)

13

Max load current

1.2A

14

Max horizontal flow rate

7.5L/MIN

15

Max static lift

11M

16

Noise class

<40dB

17

Waterproof class

IP68(suitable for submersible installation)

18

Life span

Can be more than 30,000hrs

19

Power supply

Suitable for solar panel, batteries, adapter or other power source

20

Protection function

dry-run protection, stuck protection(customized function)

21

Power regulation function

Speed can adjustable by PWM signal, 0~5V analog signal or potentiometer (customized function)

22

Feature

small size with high efficiency,maintenance-free

Use ceramics shaft and carbon fiber sleeve

Completely water proof (IP68)

Brush-less dc control without pollution, long life span

OEM and ODM service accept

Offer Pump related control system design

Electrical parameters (only for reference)

Model No.

Voltage

Max load current

Max static lift

Max flow rate

Power consumption

V(dc)

A

M

L/H

w

DC40H-1240

12

0.50

4.0

270

6.0

DC40H-1265

12

1.2

6.5

360

14.4

DC40H-1890

18

1.20

9.0

420

21.6

DC40H-2490

24

0.90

9.0

420

21.6

DC40H-24110

24

1.20

11.0

450

28.8

NOTE

Information including continuous working time, working temperature and medium is required to be confirmed by professionals; pump cannot work with high temperature or corrosive fluids.

When pump is connected into circulation system, load current will be reduced to 70~85% of Max working current (opening outlet current).

Head means the Max vertical lifting height of water, the flow is 0L/MIN@max head.

The max flow rate means flow rate with no lifting height(horizontal flow rate)

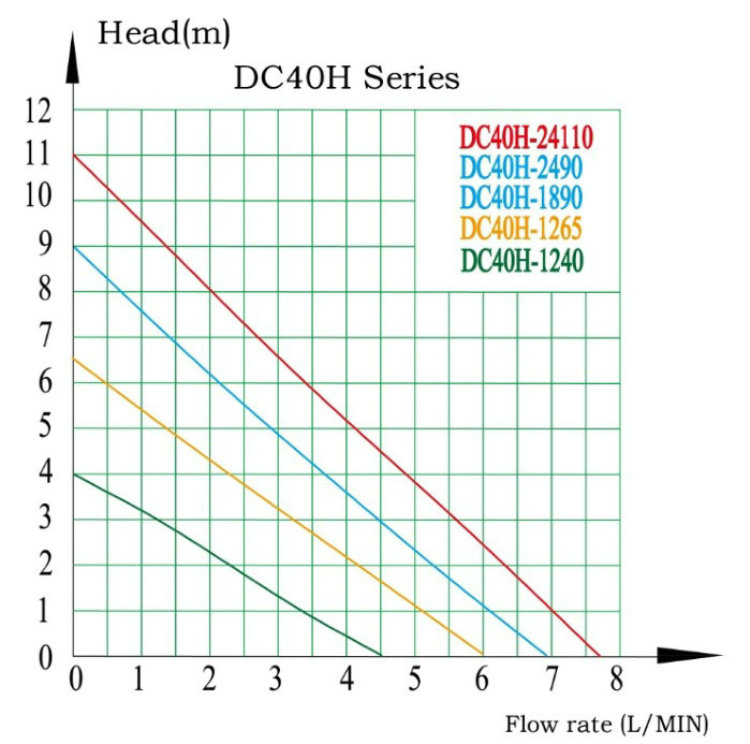

Flow rate-lift Curve

图片关键词

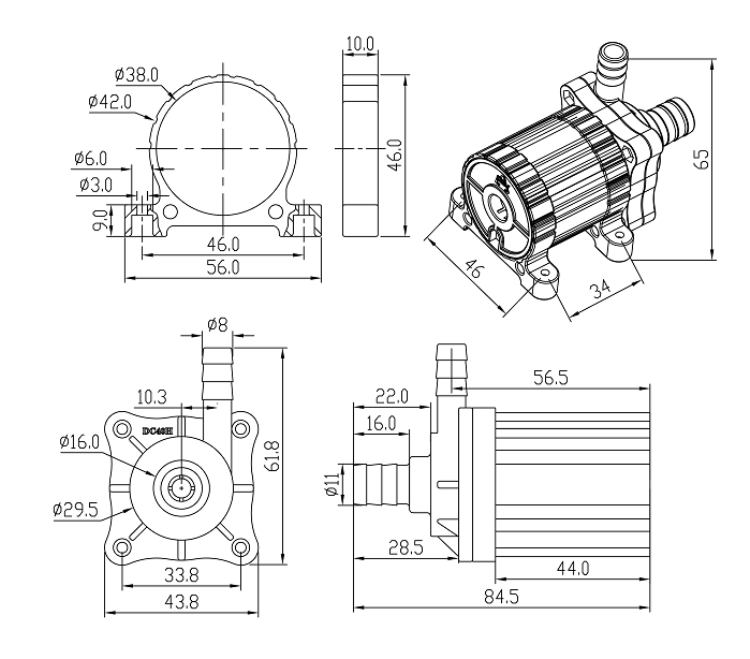

Dimensions of pump

图片关键词

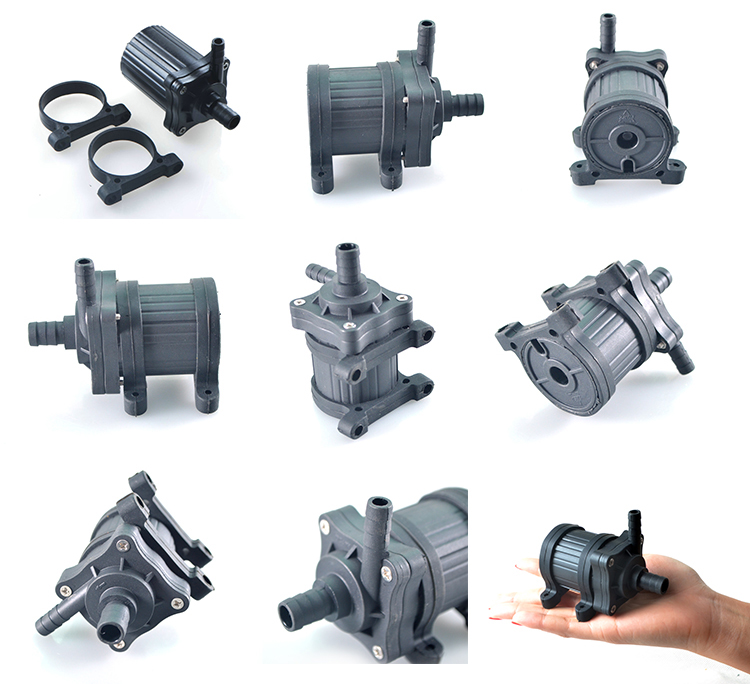

Outlook detail
