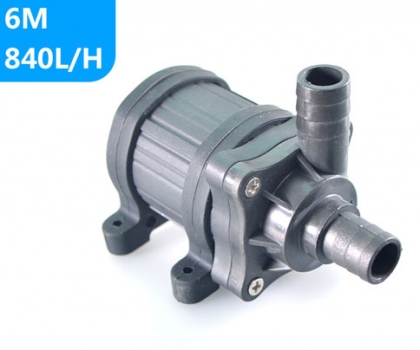

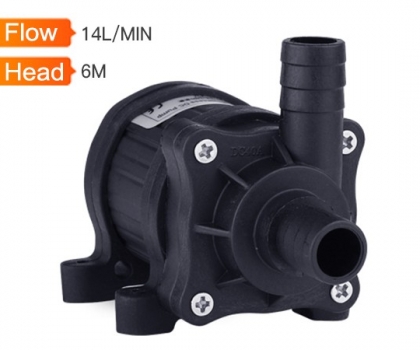

Micro Water Pump - DC40A
Micro Water Pump - DC40A
Micro Water Pump - DC40A
Micro Water Pump - DC40A

Micro Water Pump - DC40A

2021-09-06 16:35:30   185

NO.ItemSpecs1Dimension and weight87.5mmx61.8mmx43.8mm;220g2Installation dimension87.5mmx65mmx56mm;3External diameter of outlet14mm4External diameter of inlet14mm5Driving mechanismBrush-less, magnetic

  • Model : DC40A
  • Rated Voltage :
  • Max Static Head : DC12V/24V
  • Max Flow rate : 87.5mmx61.8mmx43.8mm
  • Input Power :
  • Inlet Outer Diameter :
  • Outlet Outer Diameter :
  • Size :
  • Weight :
  • Material :
  • Waterproof :
  • Noise :
  • Liquid Temperature :

NO.

Item

Specs

1

Dimension and weight

87.5mmx61.8mmx43.8mm;220g

2

Installation dimension

87.5mmx65mmx56mm;

3

External diameter of outlet

14mm

4

External diameter of inlet

14mm

5

Driving mechanism

Brush-less, magnetic separation

6

Material of pump shell

ABS,PES/SPS/PPS/PA66+30%GF (Optional)

7

Condition of use

Can continuously work, submersible or land use (not self-priming)

8

Suitable medium

Water, oil, or normal acid/ alkaline liquids

(Test needed for special liquid)

9

Max working temperature

60

10

Power consumption

2.5W~28.8W

11

Rated voltage

12Vdc or 24Vdc

12

Working voltage range

5Vdc ~ 12Vdc or 5Vdc ~ 24Vdc

13

Max load current

1.2A

14

Max horizontal flow rate

14L/MIN

15

Max static lift

6M

16

Noise class

<40dB

17

Waterproof class

IP68(suitable for submersible installation)

18

Life span

Can be more than 30,000hrs

19

Power supply

Suitable for solar panel, batteries, adapter or other power module

20

Protection function

Water protection, dry-run protection, stall protection, stuck protection

(functions are optional for customization)

21

Power regulation function

Speed can adjustable by PWM signal, 0~5V analog signal or potentiometer (customized function)

22

Feature

small size with high efficiency,maintenance-free

Use ceramics shaft and carbon fiber sleeve

Completely water proof (IP68)

Brush-less dc control without pollution, long life span

OEM and ODM service accept

Offer Pump related control system design
