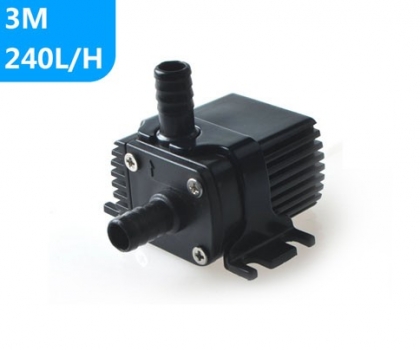

Micro Water Pump - DC30A
Micro Water Pump - DC30A
Micro Water Pump - DC30A
Micro Water Pump - DC30A

Micro Water Pump - DC30A

2021-09-06 16:35:55   61

Model No.: DC30A-1225Inlet (Out diameter): 8mmRated Voltage: 12VMax Static Head: 3 metersCable Length:0.45 meters (Can be customized)Outlet (Out diameter): 8mmRated Current:about 0.4AMax Flow Rate:240

  • Model : DC30A
  • Rated Voltage :
  • Max Static Head : 5V/12V
  • Max Flow rate : 51mmx34mmx42.7mm
  • Input Power :
  • Inlet Outer Diameter :
  • Outlet Outer Diameter :
  • Size :
  • Weight :
  • Material :
  • Waterproof :
  • Noise :
  • Liquid Temperature :

Model No.: DC30A-1225
Inlet (Out diameter): 8mm
Rated Voltage: 12V
Max Static Head: 3 meters
Cable Length:0.45 meters (Can be customized)
Outlet (Out diameter): 8mm
Rated Current:about 0.4A
Max Flow Rate:240L/H
Speed Adjustable: No
Size: 51mm * 34mm * 42.7mm
Material: ABS(can be customized)
Working: Continuous
Power supply: Solar panel, Battery, adaptor,Power Module
Weight: about 50g
Max working temperature:60℃
Default Plug: No Plug (Can be customized)
Self-priming: No


Flow Chart

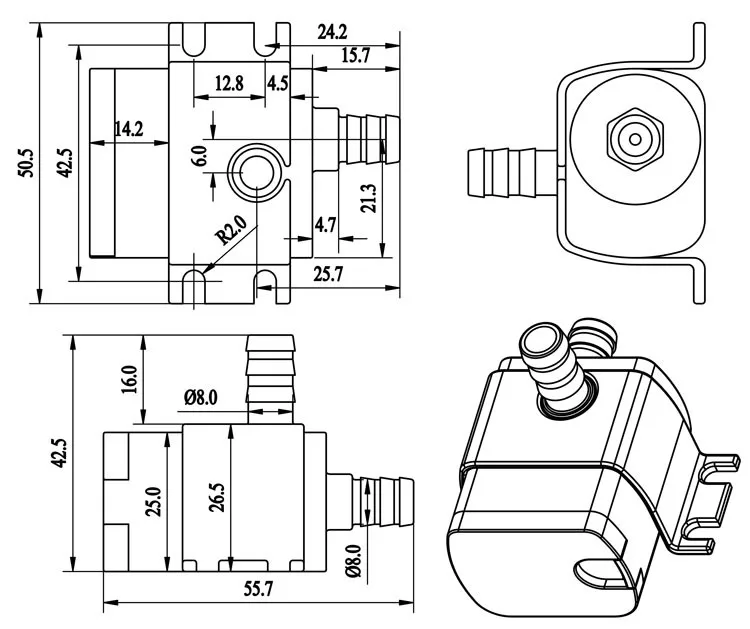

Dimension
