Main Features:
1. Brushless DC motor, also known as EC motor; Magnetic Driven;
2. Small size but strong; Low consumption & High Efficiency;
3. Long time continuous working, lifespan about 30000 hours;
4. Safety - no spark, Explosion - Proof; Low noise about 40dB;
5. Submersible, 100% waterproof;
6. Wide range of working voltage; Maintenance - free;
7. Can be used to pump water, oil, acid and alkali solution;
8. Variety Power: DC electric source, Battery or Solar Panel;
9. Soft Start with Low in-rush current, great for the Solar System.
Specification:
Model: | DC50E |

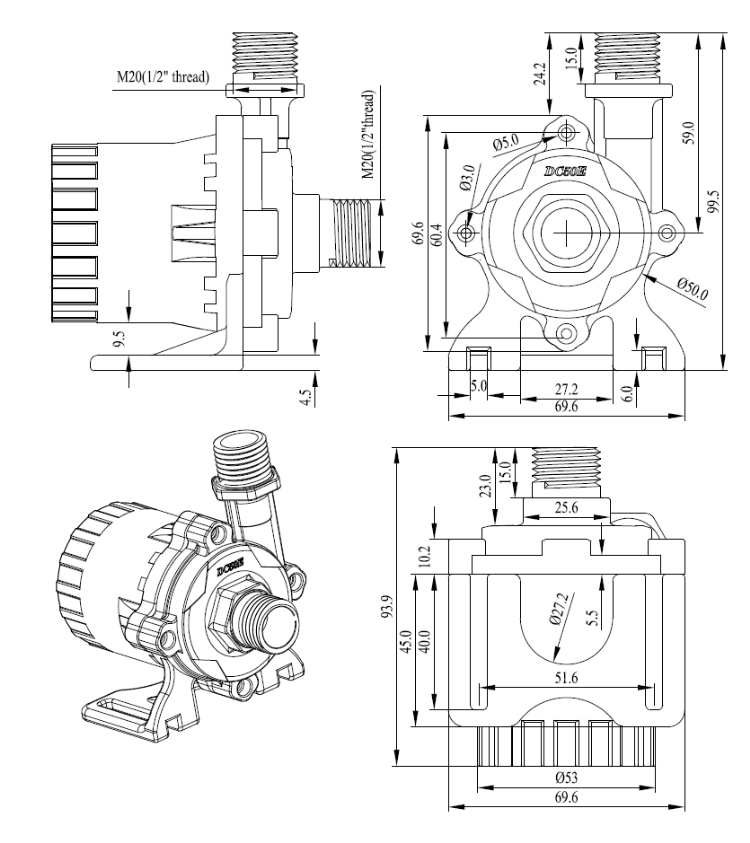

Dimension and weight | 93.9mmx99.5mmx69.6mm;480g |
External diameter of outlet | 1/2" thread(M20) |
External diameter of inlet | 1/2" thread(M20) |
Suitable medium | Water, oil, or normal acid/ alkaline liquids |
Max working temperature | 60℃(for T sub-series) or 100℃(for S/A sub-series) |
Power consumption | 2.5W~48W(for T sub-series) or 2.5W~86.4W(for S/A sub-series) |
Rated voltage | 12Vdc or 24Vdc |
Max load current | 2.0A (for T sub-series) or 4.5A(for S/A sub-series) |

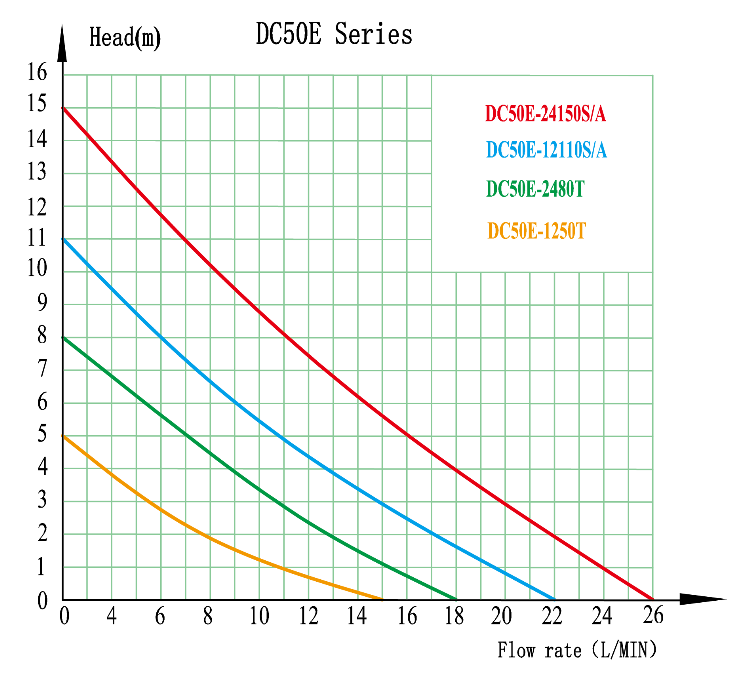

Max horizontal flow rate | 18L/MIN(for T sub-series) or 26L/MIN(for S/A sub-series) |
Max static lift | 8M(for T sub-series) or 15M(for S/A sub-series) |
Life span | >30,000hrs |
Power supply | Suitable solar panel, batteries, adapter or other power source |
Protection function | dry-run protection, lock protection(customized function) |
Power regulation function | Speed adjustable by PWM signal, 0~5V analog signal or potentiometer |
![]( "1570798529459704.png")
![]( "1570798529132231.png")
![]( "1570798529397750.jpg")
