3 PHASES DC water pump - DC50A
3 PHASES DC water pump - DC50A
3 PHASES DC water pump - DC50A
3 PHASES DC water pump - DC50A

3 PHASES DC water pump - DC50A

2021-09-07 15:31:24   83

Main Features:1. Brushless DC motor, also known as EC motor; Magnetic Driven;2. Small size but strong; Low consumption & High Efficiency;3. Long time continuous working, lifespan about 30000 hours

  • Model : DC50A
  • Rated Voltage :
  • Max Static Head : 12V/24V
  • Max Flow rate : 115.9mmx95.5mmx69.3mm
  • Input Power :
  • Inlet Outer Diameter :
  • Outlet Outer Diameter :
  • Size :
  • Weight :
  • Material :
  • Waterproof :
  • Noise :
  • Liquid Temperature :

Main Features:

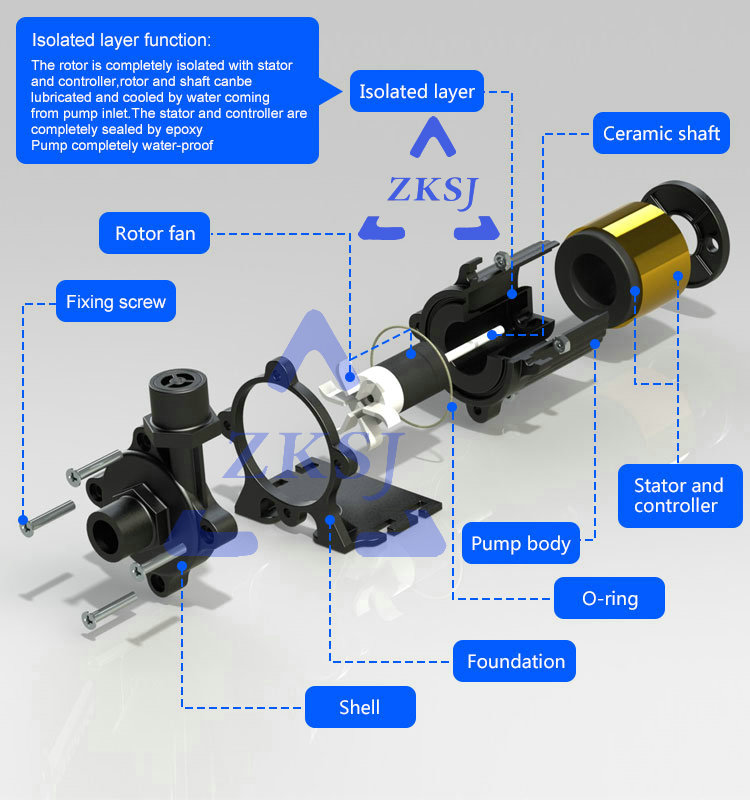

1. Brushless DC motor, also known as EC motor; Magnetic Driven;
2. Small size but strong; Low consumption & High Efficiency;
3. Long time continuous working, lifespan about 30000 hours;
4. Safety - no spark, Explosion - Proof; Low noise about 40dB;
5. Submersible, 100% waterproof;
6. Wide range of working voltage; Maintenance - free;
7. Can be used to pump water, oil, acid and alkali solution;

Specification:

Model: DC50A

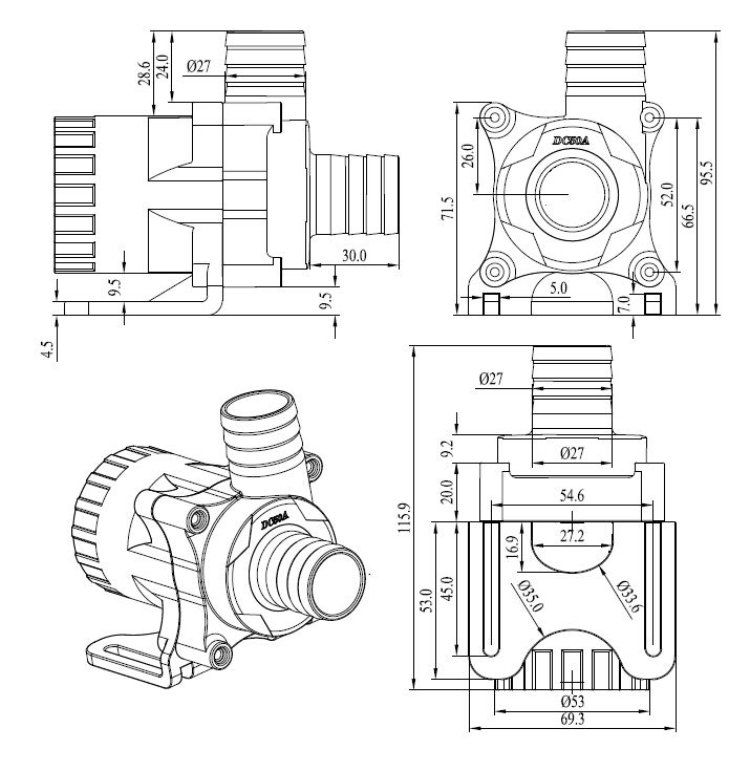

Dimension and weight
115.9mmx95.5mmx69.3mm;480g
External diameter of outlet
27mm
External diameter of inlet
27mm
Material of pump shell
ABS,PES/SPS/PPS/PA66+30%GF (Optional)
Max working temperature
60℃(for T sub-series) or 100℃(for S/A sub-series)
Power consumption
2.5W~48W(for T sub-series) or 2.5W~86.4W(for S/A sub-series)
Rated voltage
12Vdc or 24Vdc
Working voltage range
5Vdc ~ 14Vdc or 5Vdc ~ 26Vdc

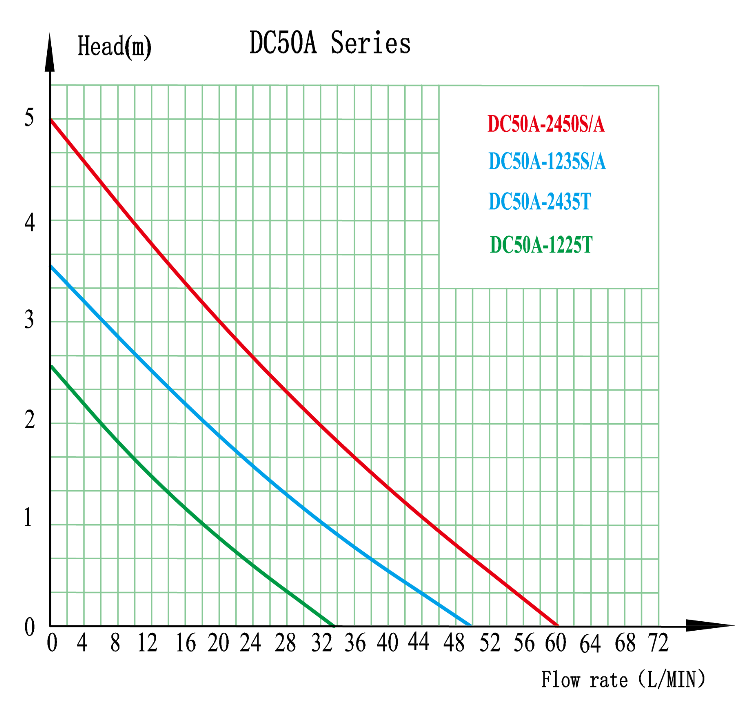

Max horizontal flow rate
52L/MIN(for T sub-series) or 60L/MIN(for S/A sub-series)
Noise class
<40dB
Max static lift
3.5M(for T sub-series) or 5M(for S/A sub-series)
