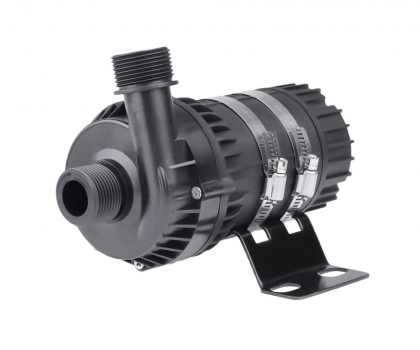

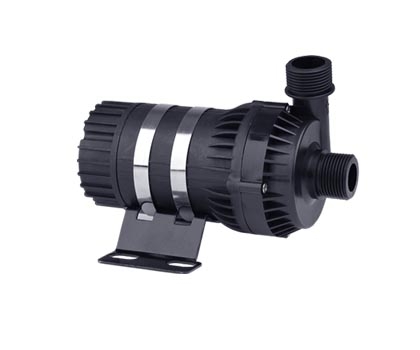

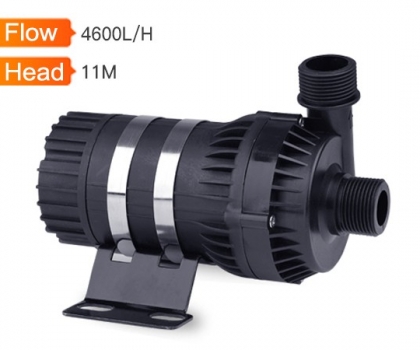

Brushless DC Pump - DC80E
Brushless DC Pump - DC80E
Brushless DC Pump - DC80E
Brushless DC Pump - DC80E
Brushless DC Pump - DC80E
Brushless DC Pump - DC80E

Brushless DC Pump - DC80E

2021-09-06 15:12:48   367

Specification:

  • Model : DC80E
  • Rated Voltage : DC 12V/24V
  • Max Static Head : 8M / 11M
  • Max Flow rate : 3800LPH / 4600LPH
  • Input Power : 80W/120W
  • Inlet Outer Diameter : 32mm(thread)
  • Outlet Outer Diameter : 32mm(thread)

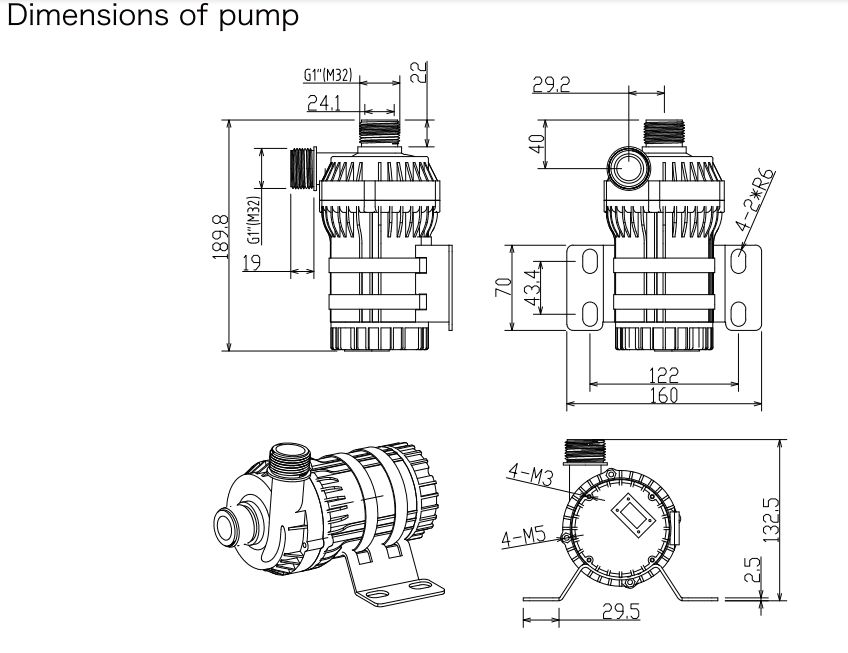

  • Size : 144mm*213.8mm*147.3mm
  • Weight : about 2000g
  • Material : PA66+30%GF
  • Waterproof : IP68
  • Noise : less than 40dB
  • Liquid Temperature : -40°C~120°C

Detailed Specification:


Model No.Voltage(DC)Current(A)Max. Head(M)Max. Flow Rate(L/H)Max. Power(W)
DC80E-1280S126.68380080
DC80E-1280A126.68380080
DC80E-24110S245114600120
DC80E-24110A245114600120


Model selection notice

- Information including continuous working time, working temperature and medium is required to be confirmed by professionals; pump cannot work with high temperature or corrosive fluids

- When pump is connected into circulation system, load current will be reduced to 70~85% of Max working current (opening outlet current).

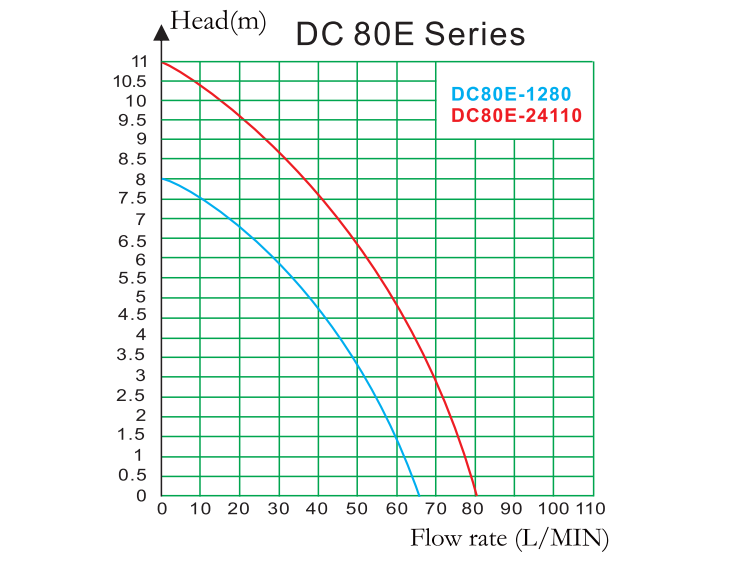

Head means the Max vertical lifting height of water, the flow is 0L/MIN@max head.

- The max flow rate means flow rate with no lifting height(horizontal flow rate)
